HP HPE ProLiant DL180 Gen10 User Manual

a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
• Extend the server from the rack.
• Remove the server from the rack.
4. Remove the access panel.
5. Remove the air baffle.

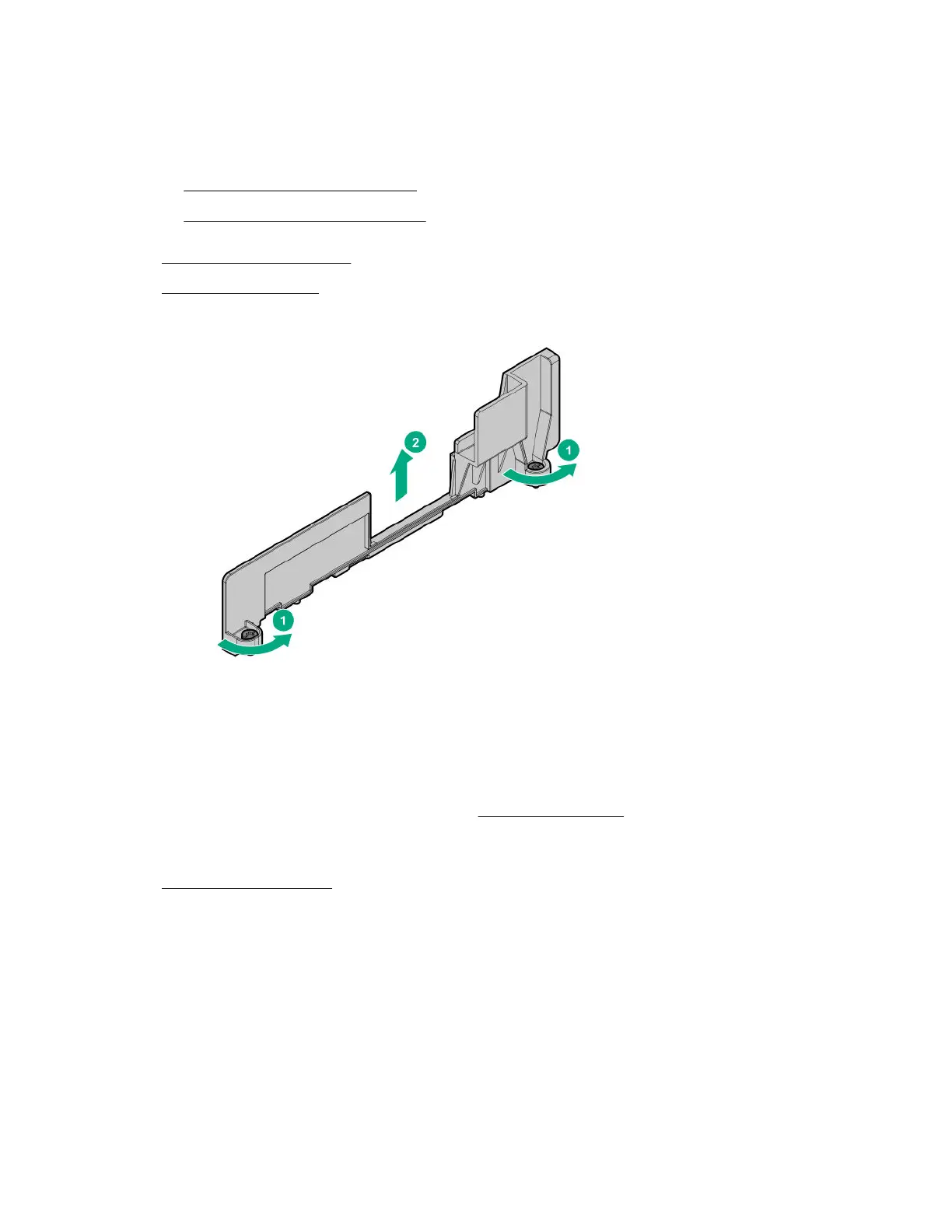

6. Remove the DIMM guard.
7. Manage cables in the channel between DIMM guard and chassis.
To replace the component, reverse the removal procedure.
Removing and replacing a DIMM
To identify the DIMMs installed in the server, see DIMM slot locations.
Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
Removal and replacement procedures 83

HP HPE ProLiant DL180 Gen10 Specifications

General

Processor Sockets	2
Memory Slots	16 DIMM slots
Expansion Slots	Up to 6 PCIe 3.0 slots
Form Factor	2U Rack
Management	HPE iLO 5
Processor	Intel Xeon Scalable processors
Storage	Up to 12 LFF or 24 SFF drives
RAID Support	HPE Smart Array S100i SR Gen10
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Network Controller	Optional FlexibleLOM or stand-up card
