To replace the component, reverse the removal procedure.
Removing the LFF optical drive cage
Prerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
Procedure
1. If installed, remove the front bezel.
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Do one of the following:
• Extend the server from the rack.
• Remove the server from the rack.
5. Remove the access panel.
6. Remove the air baffle.
7. Disconnect the iLO service port cable from system board.
8. If installed, disconnect the ODD cable.

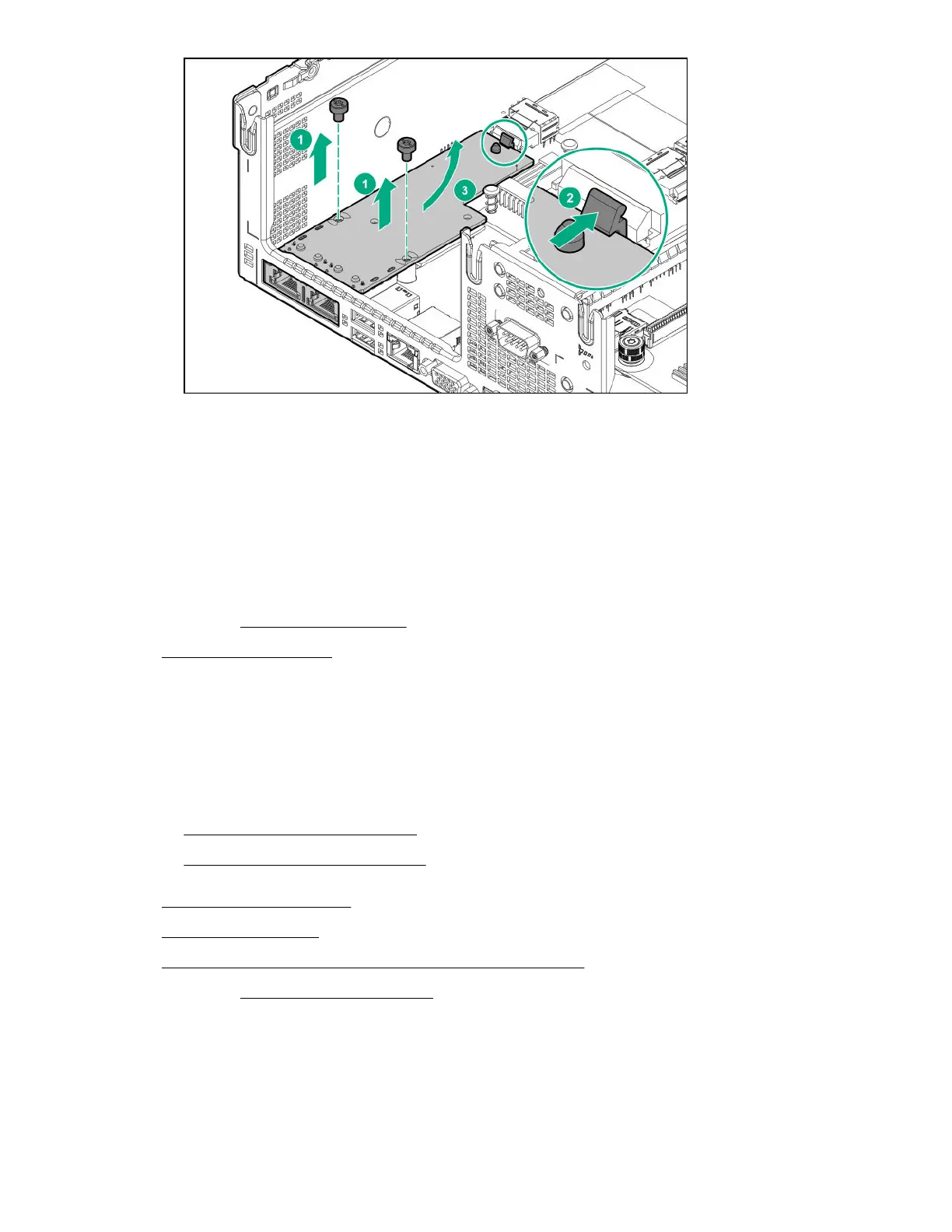

9. Remove the LFF optical drive cage.
66 Removal and replacement procedures
