To replace the component, reverse the removal procedure.
Removing and replacing an 8-bay SFF drive backplane
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. If installed, remove the front bezel.
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Do one of the following:
• Extend the server from the rack.
• Remove the server from the rack.
5. Remove the access panel.
6. Remove the air baffle.
7. Remove all drives in the cage.
8. Disconnect all cables from 8-bay SFF drive backplane.

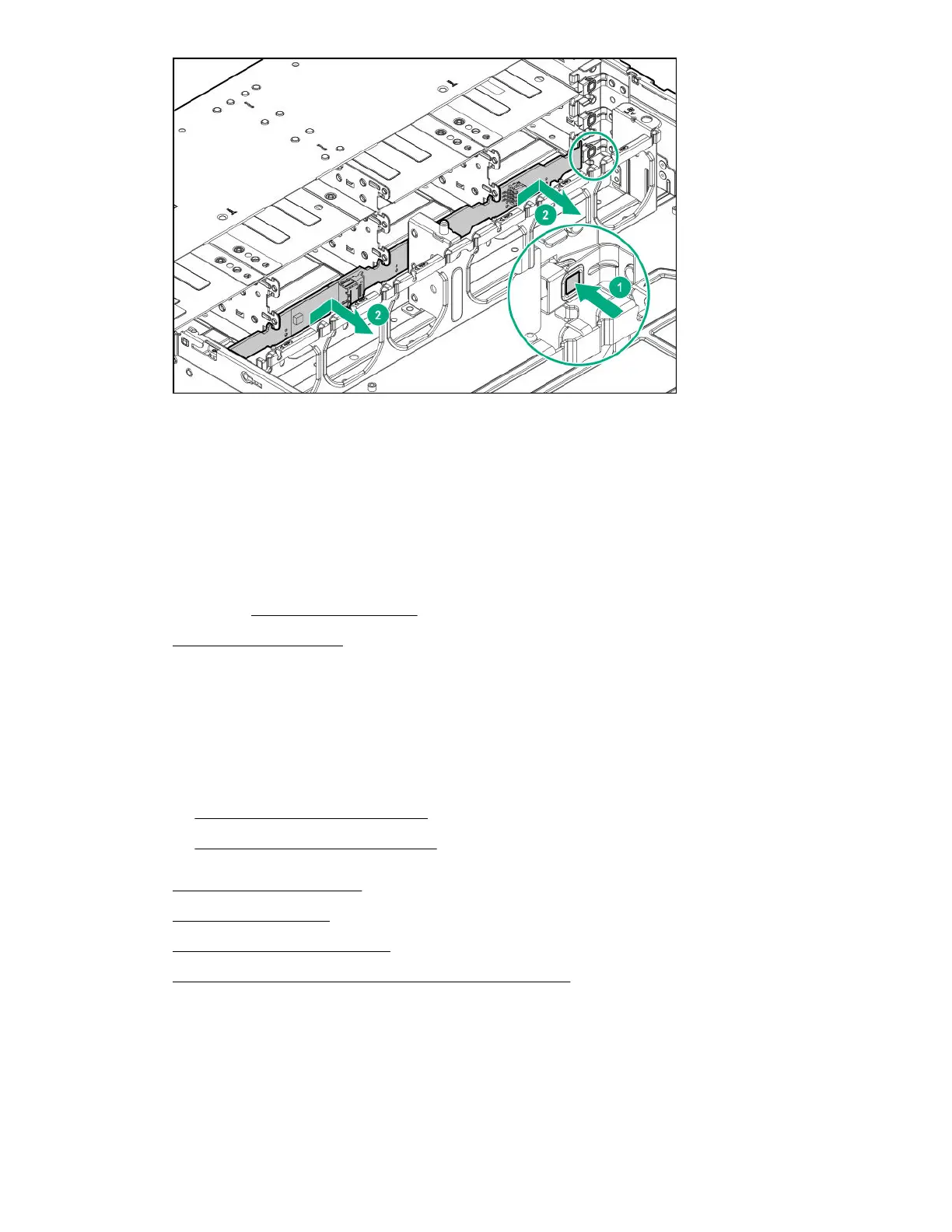

9. Remove the SFF drive cage.
