Hardware options installation 76

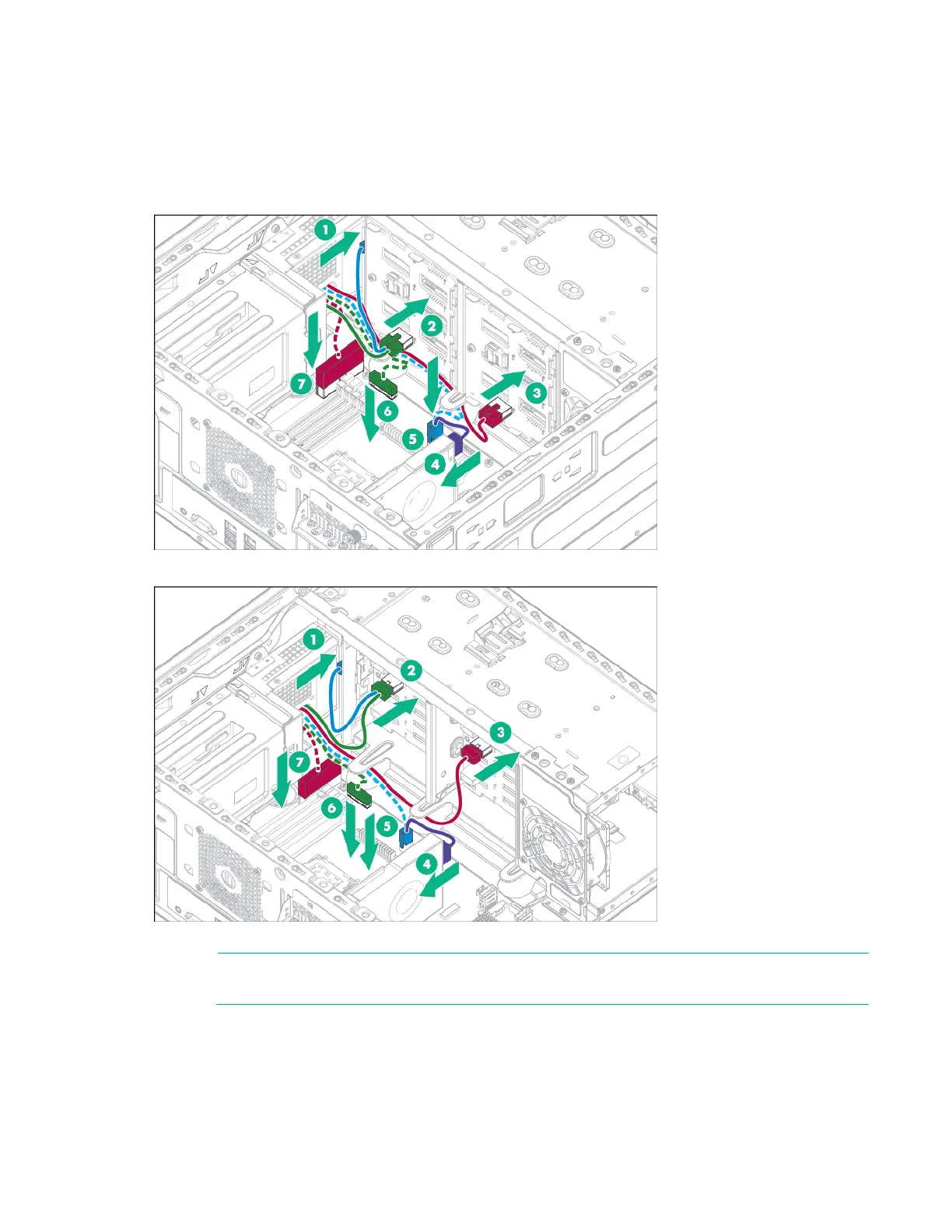

— 4-pin power cable to system board
— 6-pin power cable to GPU, if installed
— RPSU cable to system board
— 24-pin power cable to system board
4 LFF hot-plug configuration
8 SFF hot-plug configuration
12. Install a hot-plug power input module in the power supply bay 1.
NOTE: When facing the rear of the server in an upright position, the upper level of power
supply bay is bay 1 and the lower level is bay 2.
