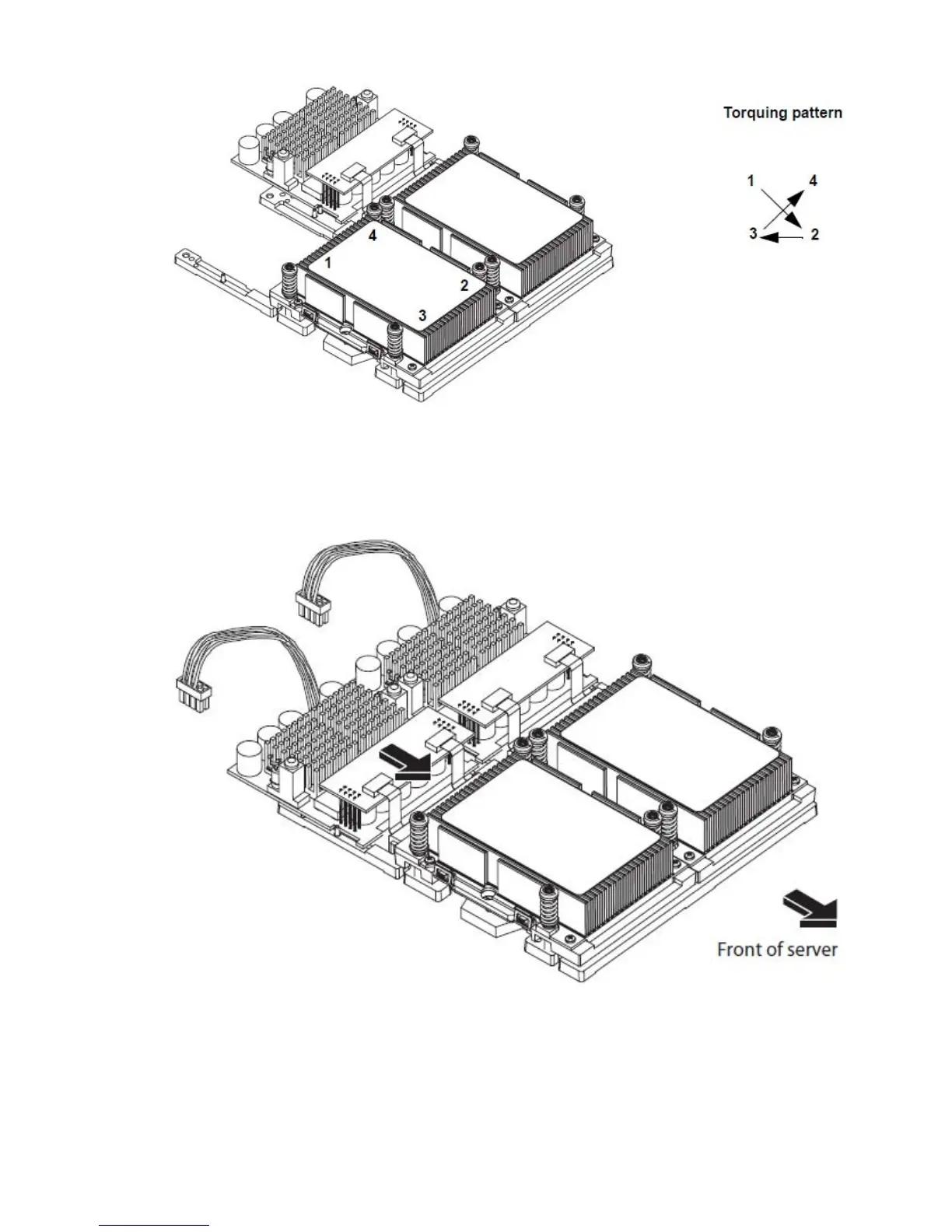

Figure 39 Installing the Processor
8. Slide the power module on the system board metal mounting bracket so that the power module
contacts connect with the processor connector.
Figure 40 Connecting the Processor Power Pod
9. Align the two mounting screw holes on the power module with their screw holes on the system
board’s metal mounting bracket. Screw in the power module mounting screws.
42 Removing and Replacing Components
