HP Integrity rx1620 Maintenance Guide

1. Remove the following components from your existing base unit. Refer to earlier sections of this
chapter for component removal and replacement instructions.
• Power Supply Fans
• Power Supply
• Chassis Fans
• Management Processor card (optional card, may be present)
• Management Processor Blank (present when Management Processor not installed)
• PCI I/O Backplane Assembly
• CPU(s) and associated Power Pods
• CPU Airflow guide (single CPU systems only)
• Memory DIMMs
• DVD or CD-ROM
• DVD Filler (present when a DVD or CD-ROM is not installed)
• Disk(s)
• Disk Filler(s) (present on disk-less systems)
• Display Panel

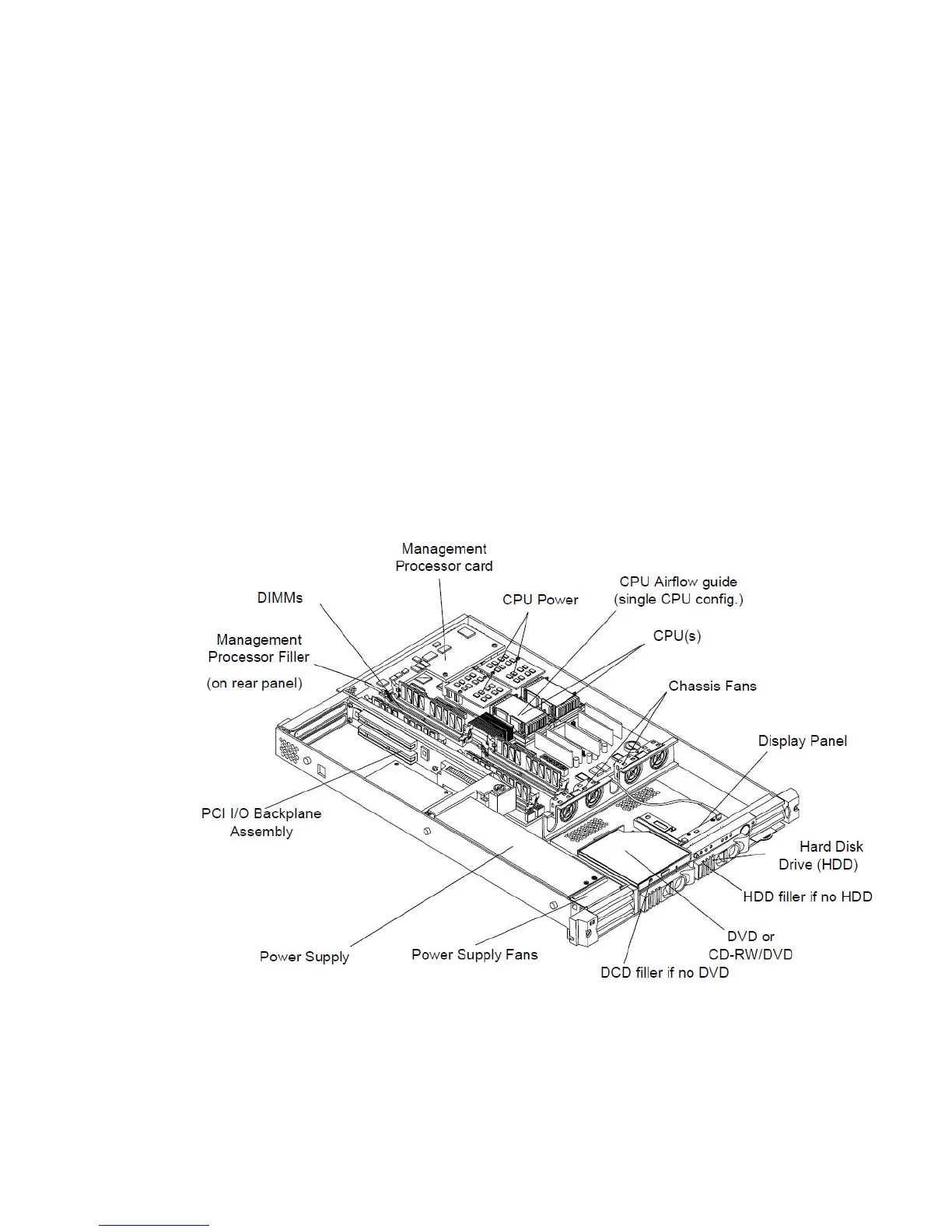

Figure 63
2. Install the previously removed components into the new base unit. Refer to earlier sections of
this chapter for component removal and replacement instructions.
• Power Supply Fans
• Power Supply
• Chassis Fans
• Management Processor card (optional card, may be present)
Replacing the Base Unit 67
