Chapter 2
13
2 Controls, Ports and Indicators
This chapter describes the controls, ports, and indicators found on the front panel, rear panel, and internal
locations of the hp Integrity rx1620 Server. The hp Integrity rx1620 Server is designed to be rack mounted.
Control Panel
The control panel of the hp Integrity rx1620 Server provides the controls and indicators commonly used for
operation.

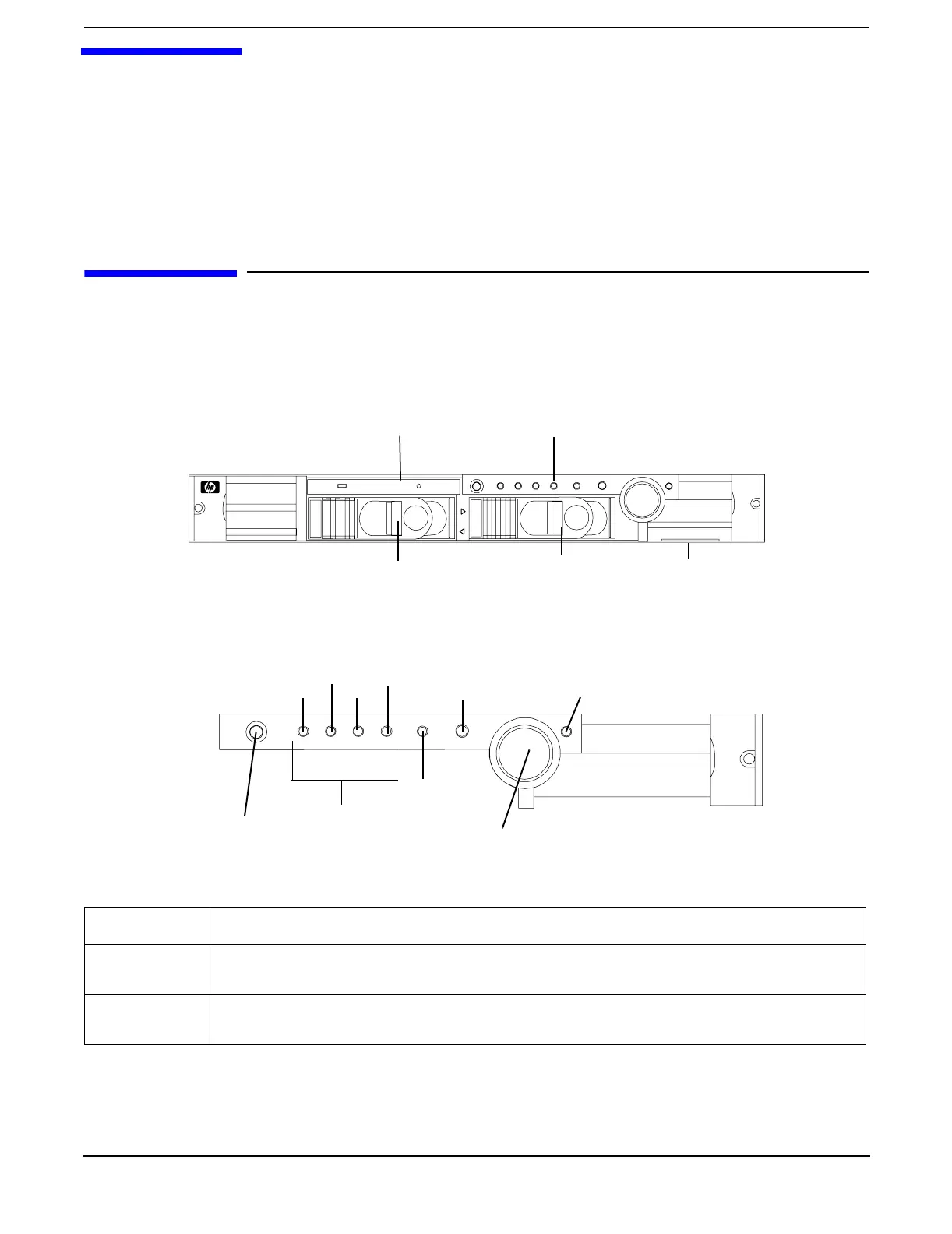

Figure 2-1 Front View
Figure 2-2 Control Panel
Table 2-1 Control Panel LEDs and Switches
Name Function
Power On/Off
LED
The green on/off LED is illuminated when the power is on.
Power On/Off
Button
This is the power on/off switch for the server.
0
1
System Product
Label
DVD Drive Control Panel
LVD HDD 2 LVD HDD 1
System
LED
Power On/Off
LED
Power On/Off
Button
Diagnostics
LEDs
LAN
LED
Locator
Button and
LED
LED 2 LED 4
LED 1 LED 3
