HP Integrity rx1620 User Manual

Chapter 3
External Connectors
LAN Connectors
25
LAN Connectors
The hp Integrity rx1620 Server has 3 different LAN connectors. They are:
• 10/100/1000 base-T ethernet LAN A Gb connector
• 10/100/1000 base-T ethernet LAN A Gb connector
• Optional 10/100 MP card
10/100/1000 base-T ethernet LAN A 1Gb Connector
The rear panel 10/100/1000 base-T ethernet LAN A 1Gb connector has the following status and activity
LEDs.

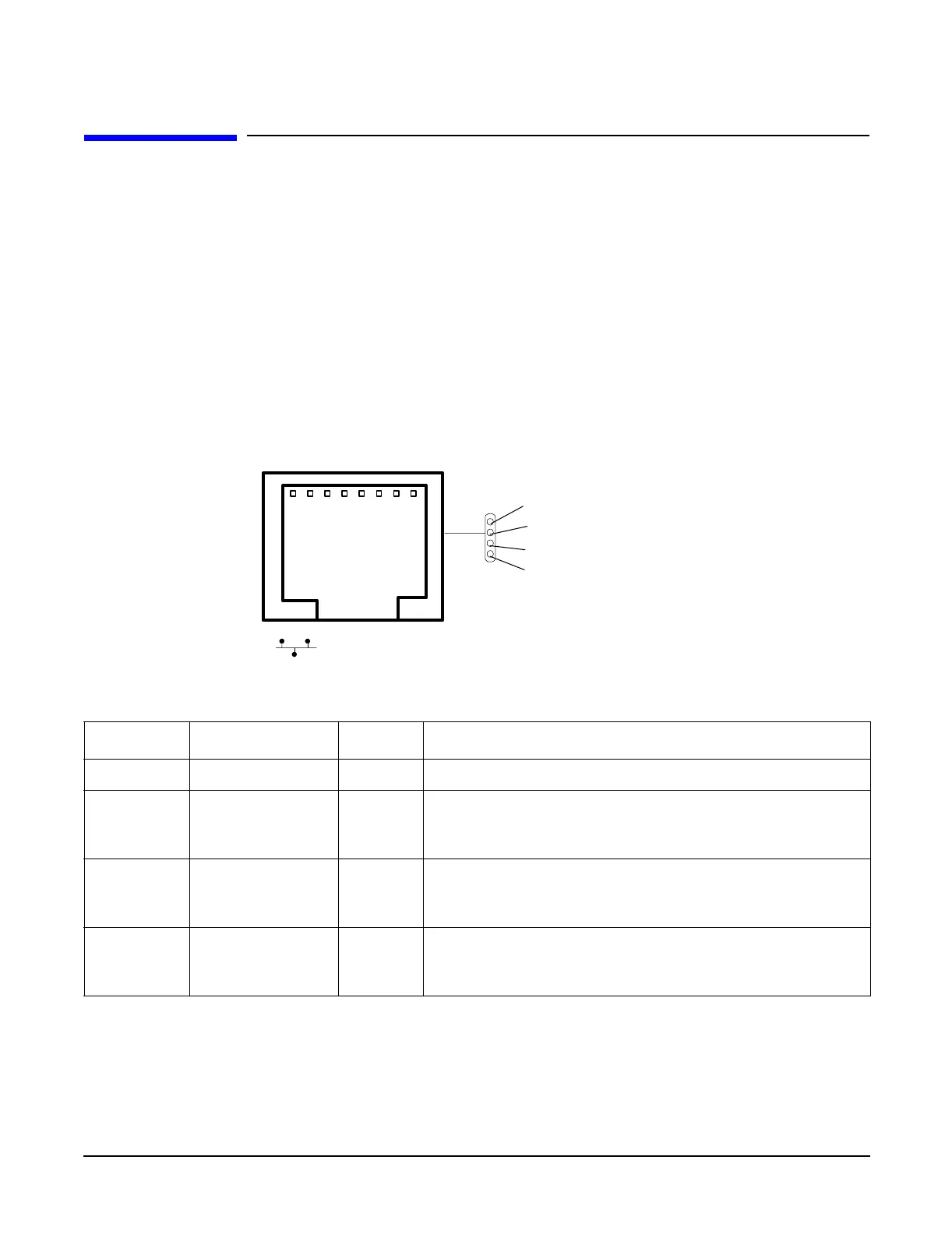

Figure 3-5 10/100/1000 base-T ethernet LAN A 1Gb Connector LEDs
Table 3-4 1Gb LAN A Connector LEDs
LAN LED Location Color State
Not used Top None None
1000mb 2nd from top Amber Blinking amber – the 1000 Mbps with ethernet protocol and
twisted-pair wiring is enabled.
Off – no link.
100mb 2nd from bottom Green Blinking green – the 100 Mbps with ethernet protocol and
twisted-pair wiring is enabled.
Off – no link.
Activity Bottom Green Blinking green – The Activity LED lights, and all other
LEDs are off for a 10 Mbps connection.
Off – no activity
Not used
1000BT
100BT
Activity
