HP Integrity rx1620 User Manual

Chapter 2
Controls, Ports and Indicators
Rear Panel
17
Rear Panel
The hp Integrity rx1620 Server rear panel includes communication ports, I/O ports, AC power connector, and
the locator LED/button.

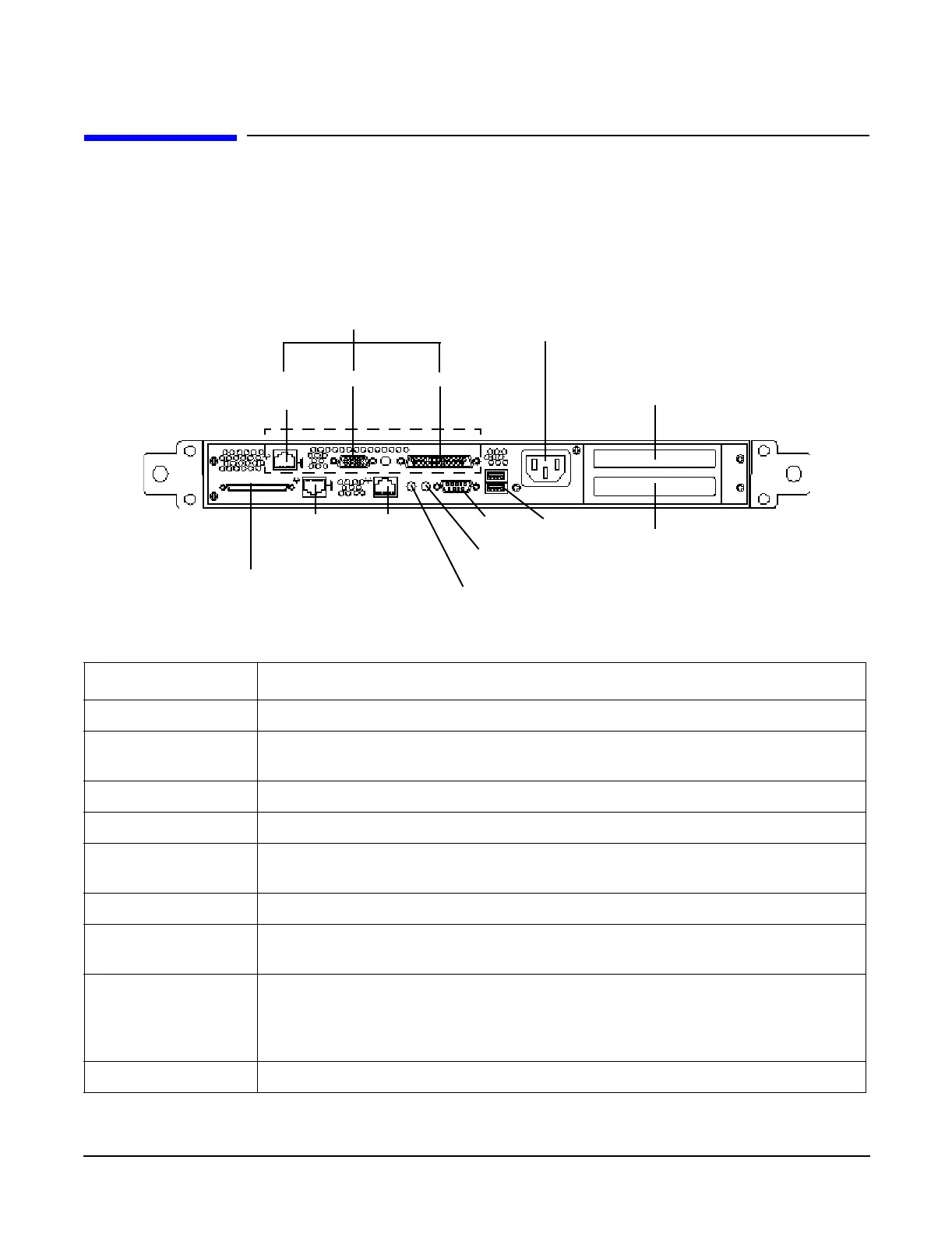

Figure 2-5 Rear View
Table 2-4 Rear Panel Connectors and Switches
Connector/Switch Function
AC Power Primary power connection for the server
LVD/SE SCSI 68-pin, low-voltage differential, single-ended U320 SCSI. This connector provides
external SCSI connection on SCSI Channel B.
10/100/1000 LAN A 10/100/1000 base-T ethernet LAN A 1Gb connector
10/100/1000 LAN B 10/100/1000 base-T ethernet LAN B 1Gb connector
Serial 9-pin male serial connector — this is the console connector if the optional
management processor card is not installed.
USB Two Universal Serial Bus (USB 2.0) connectors
ToC Transfer of Control button. Halts all system processing and I/O activity and
restarts the computer system.
Locator Button and
LED
The locator button and LED are used to help locate a server within a rack of
servers. When the button is engaged, the blue LED illuminates and an additional
blue LED on the front panel of the server illuminates. This function may be
remotely activated.
Video (optional) 15-pin female video connector for the optional management processor card
AC Power
Receptacle
LVD/SE SCSI
10/100
LAN C
10/100/1000
LAN A 1Gb
Video
10/100/1000
LAN B 1Gb
USB
Serial
PCI Slot 1
PCI Slot 2
Serial
Locator Button
and LED
ToC
Optional
Management Board
Connectors
