Chapter 3
External Connectors
LAN Connectors
27
Optional Management Processor Card LAN C 10/100 Connector LEDs
The optional management processor LAN C uses an RJ-45 type connector. This connector has four LEDs that
signal status and activity.

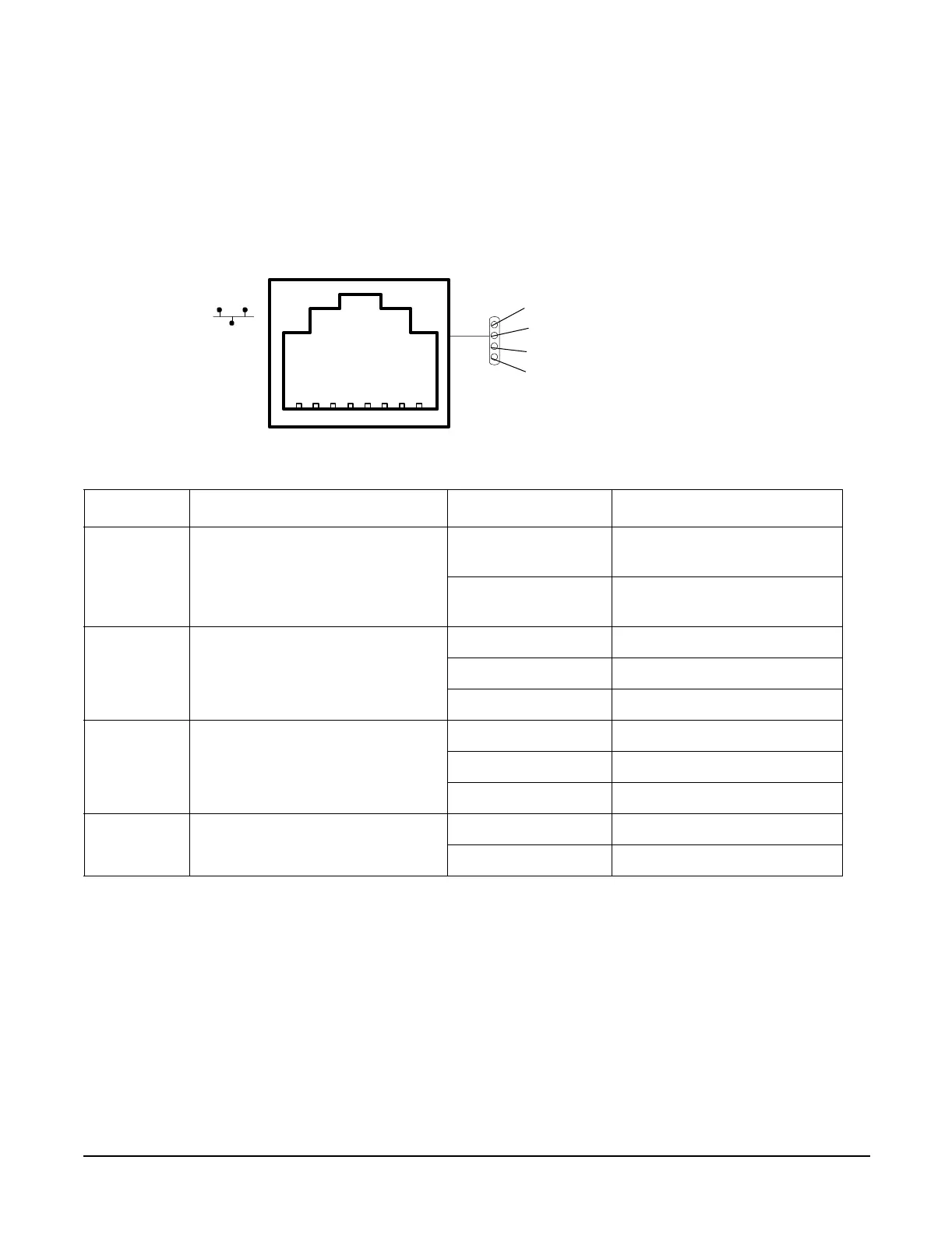

Figure 3-7 Optional Management Processor Card LAN C 10/100 Connector LEDs
Table 3-6 Optional Management Processor Card LAN C 10/100 Connector LEDs
LAN LED Location Color State
Self-test Top Yellow Management processor
running selftest or error
Off Management processor has
booted
10BT 2nd from top Green 10BT link established
Blinking green 10BT activity
Off No link or 100BT link
100BT 2nd from bottom Green 100BT link established
Blinking green 100BT activity
Off No link or 10BT link
Standby
Power
Bottom Green Standby power on
Off Standby power off
Self-test
10BT
100BT
Standby power
