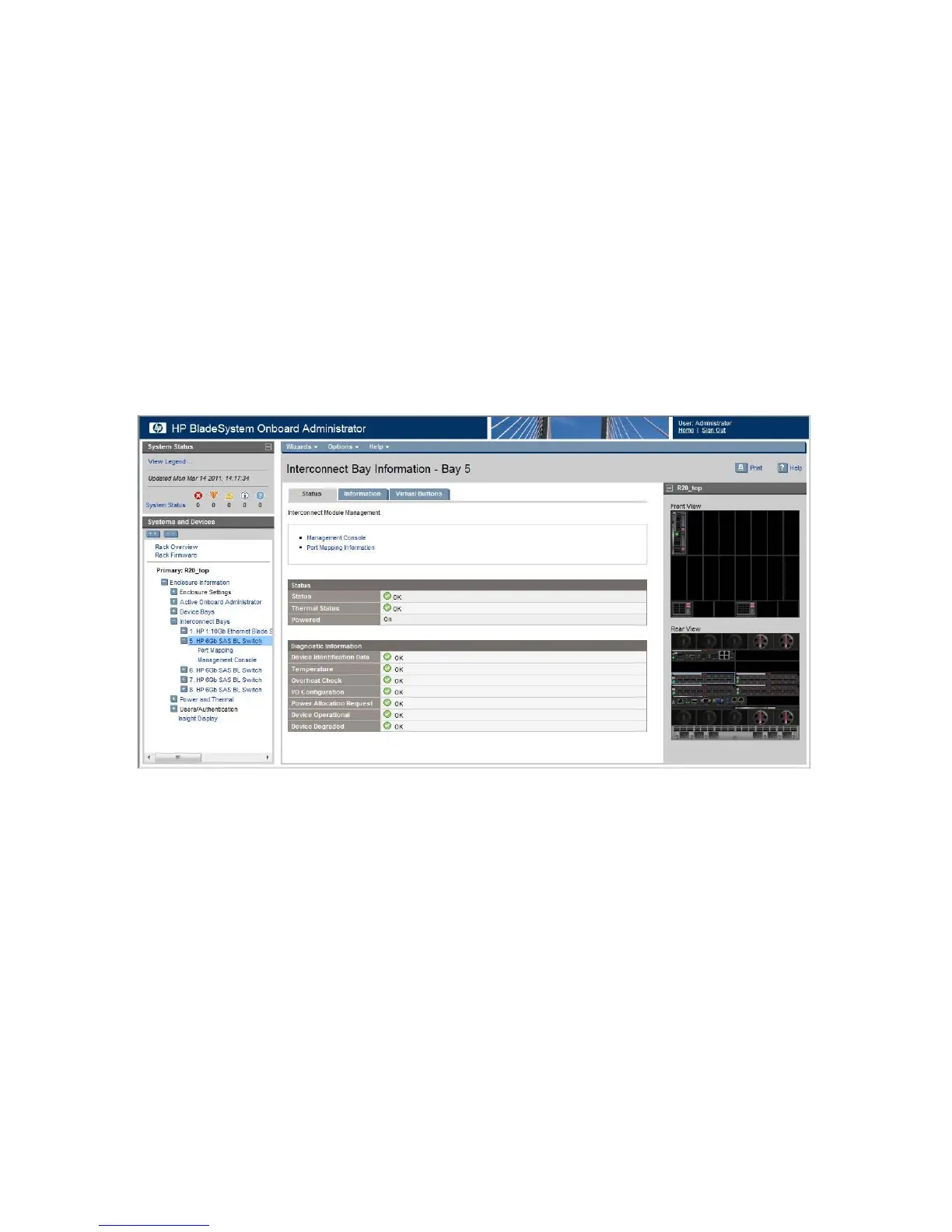

Selecting an item in the OA navigation tree displays management and monitoring tasks for the
selected device. For example, when a SAS BL Switch installed in interconnect bay 5 is selected in
the navigation tree, additional information about the device is displayed, with tabs at the top of
the display providing additional functions.
After selecting a switch, you can click options to:
• View switch status information
• View other switch information
• Click virtual buttons, including the following:
Power off the switch◦
◦ Reset the switch
◦ Toggle on/off the UID light
• Open the Management Console (HP Virtual SAS Manager)
• Open the Port Mapping window to view detailed port mapping information
28 Software information
