Shared storage—P2000 G3 SAS MSA single-controller, single-domain, standard

cabling

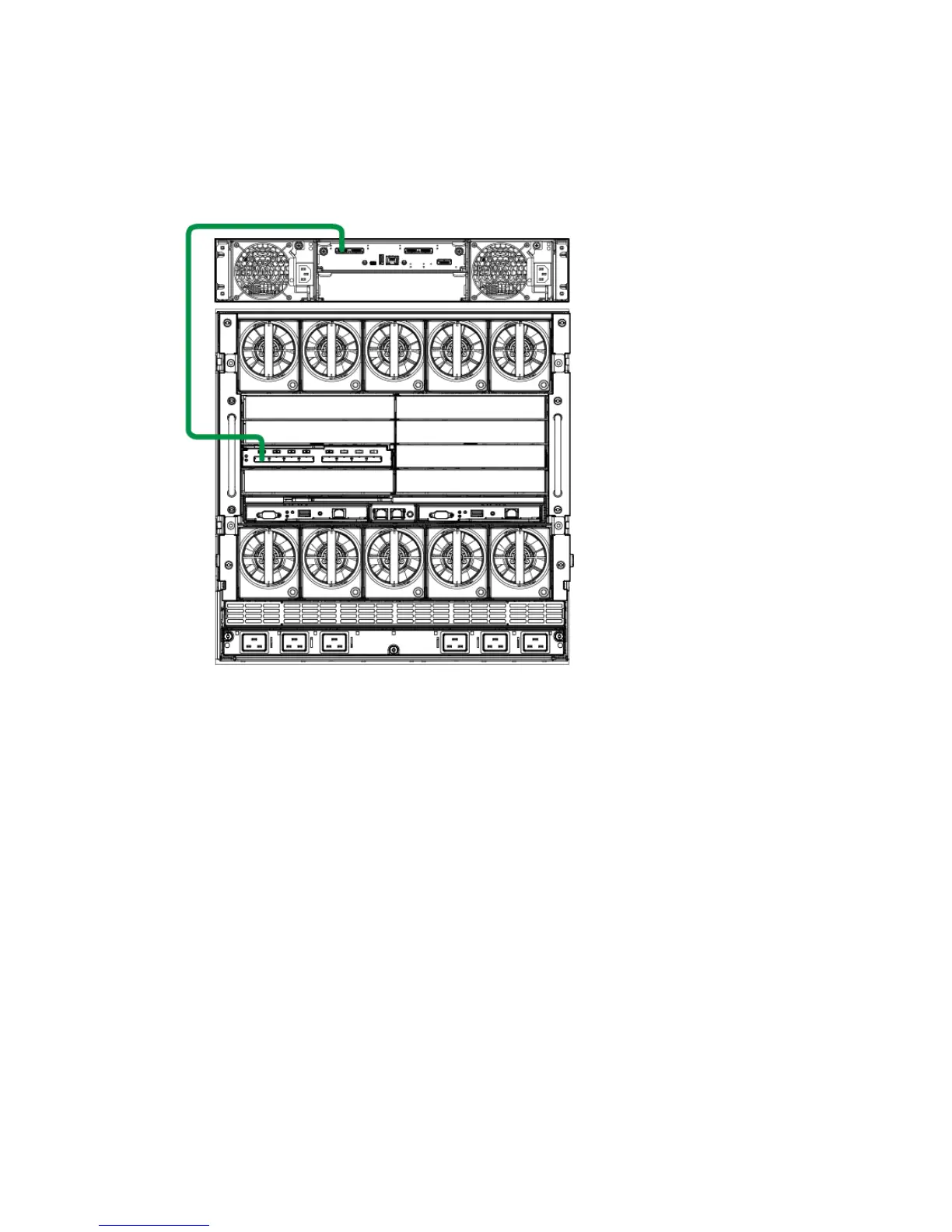

This example illustrates standard cabling for a single-controller P2000 G3 SAS MSA enclosure.

In this configuration, note the following:

• One cable from the switch to the MSA controller offers single-path connectivity.

Devices and quantities

P2000 G3 SAS MSA controller enclosures: 1

P2000 drive enclosures: 0

BladeSystem c7000 enclosures: 1

SAS BL Switches: 1

Server blade types: half-height and full-height

Connection details

• Switch in interconnect bay 5:

◦ Port 1: to P2000 G3 SAS MSA port A1

Notes

• If additional ports on the MSA controllers

or HP 6Gb SAS BL Switch are available,

HP recommends connecting an additional

cable from the switch to the MSA

controllers, for additional performance and

fault tolerance. For an example, see

“Shared storage—P2000 G3 SAS MSA

dual-controller, single-domain optimal

cabling” (page 58).

Illustrated configuration examples 57
