HP P2000 Deployment Guide

P2000 drive enclosure port information
P2000 drive enclosures are supported for use in P2000 G3 SAS MSA Array environments.

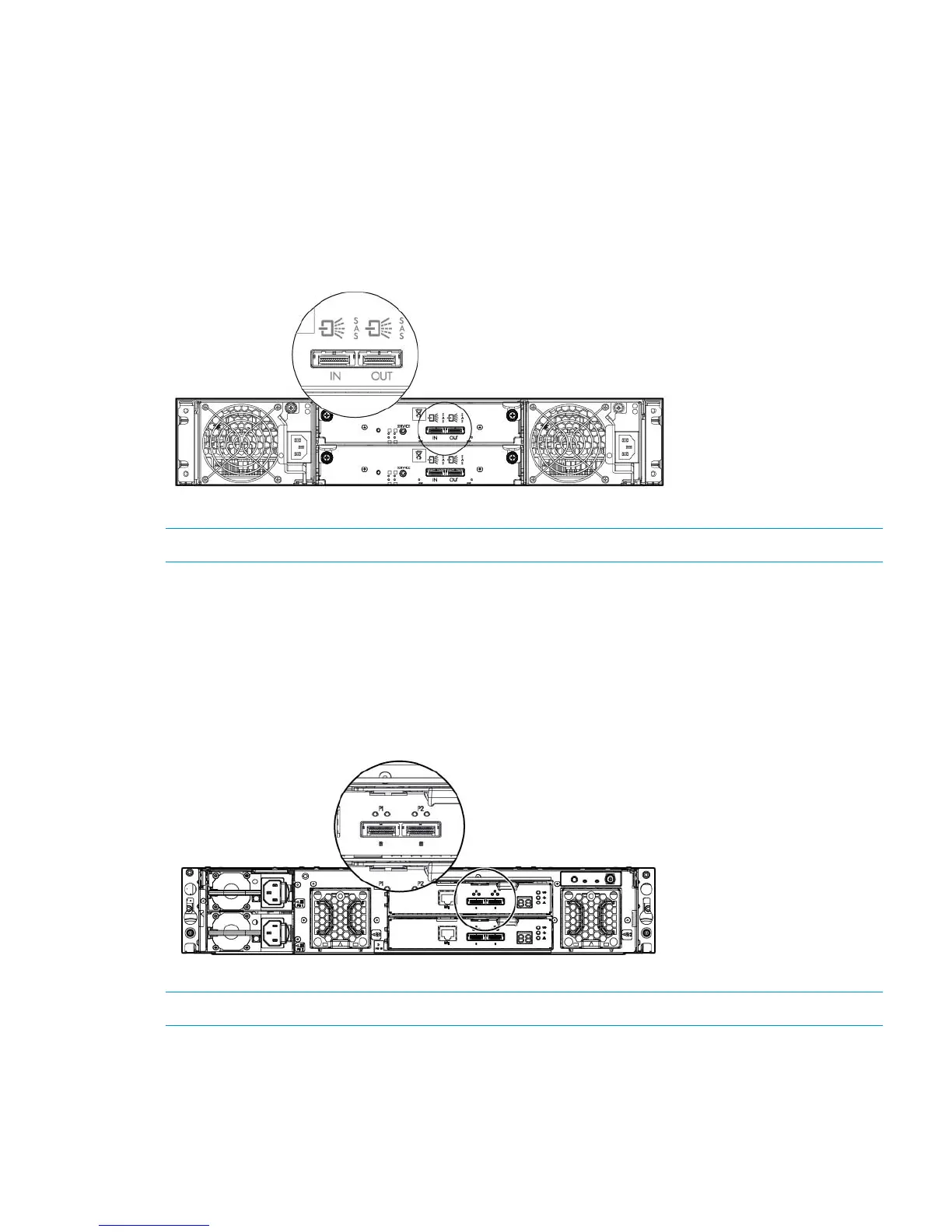

As shown in the following illustration:
• SAS In port: One per I/O module. Labelled IN. Use this SAS expansion port to connect to a
P2000 G3 SAS controller enclosure or to a P2000 drive enclosure that is between this drive
enclosure and the controller enclosure.
• SAS Out port: One per I/O module. Labelled OUT. Use this SAS expansion port to connect
(cascade) an additional P2000 drive enclosure.
NOTE: Mini-SAS to mini-SAS cables are required when connecting P2000 drive enclosures.
D2700 disk enclosure port information
As shown in the following illustration:
• SAS port 1: Labelled P1. Use this SAS expansion port for the connection to the host (through
the SAS Switch).
• SAS port 2: Labelled P2. Use this SAS expansion port to connect (cascade) an additional disk
enclosure.
NOTE: Mini-SAS to mini-SAS cables are required when connecting D2700 drive enclosures.
Device SAS port information 55
