HP ProCurve 2610 User Manual

Static Virtual LANs (VLANs)
Port-Based Virtual LANs (Static VLANs)
Switch 8000M
VLAN 1
VLAN 2
Multiple-Forwarding
Database Switch
Routing Enabled
(Same MAC address for all
VLANs.)
VLAN 1
VLAN 2
This switch has multiple
forwarding databases.
This switch has a single
forwarding database.
PC “A”
PC “B”
A1
B1
C1
D1

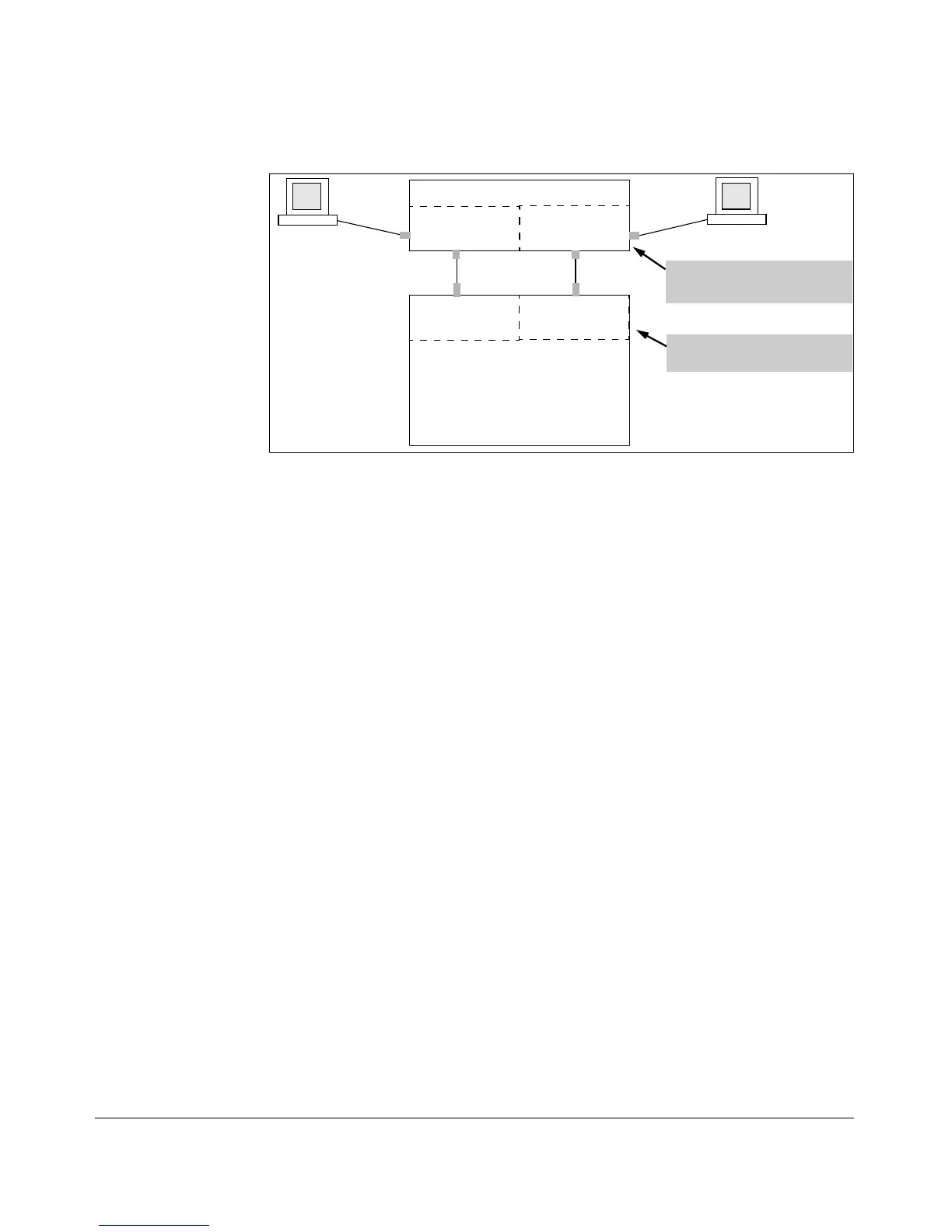

Figure 2-8. Example of Invalid Configuration for Single-Forwarding to Multiple-
Forwarding Database Devices in a Multiple VLAN Environment
In figure 2-8, PC “A” sends an IP packet to PC “B”.
1. The packet enters VLAN 1 in the Switch 8000 with the multiple-forwarding
database switch MAC address in the destination field. Because the 8000M
has not yet learned this MAC address, it does not find the address in its
address table, and floods the packet out all ports, including the VLAN 1
link (port “A1”) to the multiple-forwarding database switch. The multiple-
forwarding database switch then routes the packet through the VLAN 2
link to the 8000M, which forwards the packet on to PC “B”. Because the
8000M received the packet from the multiple-forwarding database switch
on VLAN 2 (port “B1”), the 8000M’s single forwarding database records
the multiple-forwarding database switch as being on port “B1” (VLAN 2).
2. PC “A” now sends a second packet to PC “B”. The packet again enters
VLAN 1 in the Switch 8000 with the multiple-forwarding database switch’s
MAC address in the destination field. However, this time the Switch
8000M’s single forwarding database indicates that the multiple-forward-
ing database switch is on port B1 (VLAN 2), and the 8000M drops the
packet instead of forwarding it.
3. Later, the multiple-forwarding database switch transmits a packet to the
8000M through the VLAN 1 link, and the 8000M updates its address table
to indicate that the multiple-forwarding database switch is on port A1
(VLAN 1) instead of port B1 (VLAN 2). Thus, the 8000M’s information on
the location of the multiple-forwarding database switch changes over
time. For this reason, the 8000M discards some packets directed through
it for the multiple-forwarding database switch, resulting in poor perfor-
mance and the appearance of an intermittent or broken link.
2-13

HP ProCurve 2610 Specifications

General

Switching Capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
MAC Address Table Size	8000 entries
Layer	Layer 2
RAM	64 MB
Flash Memory	16 MB
Jumbo Frame Support	Yes
Manageable	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 x 10/100
VLANs	256
Management	Web, CLI, SNMP
Power Supply	Internal
Operating Temperature	0°C to 40°C
Dimensions (W x D x H)	17.42 x 12.73 x 1.73 in
