Static Virtual LANs (VLANs)
Port-Based Virtual LANs (Static VLANs)

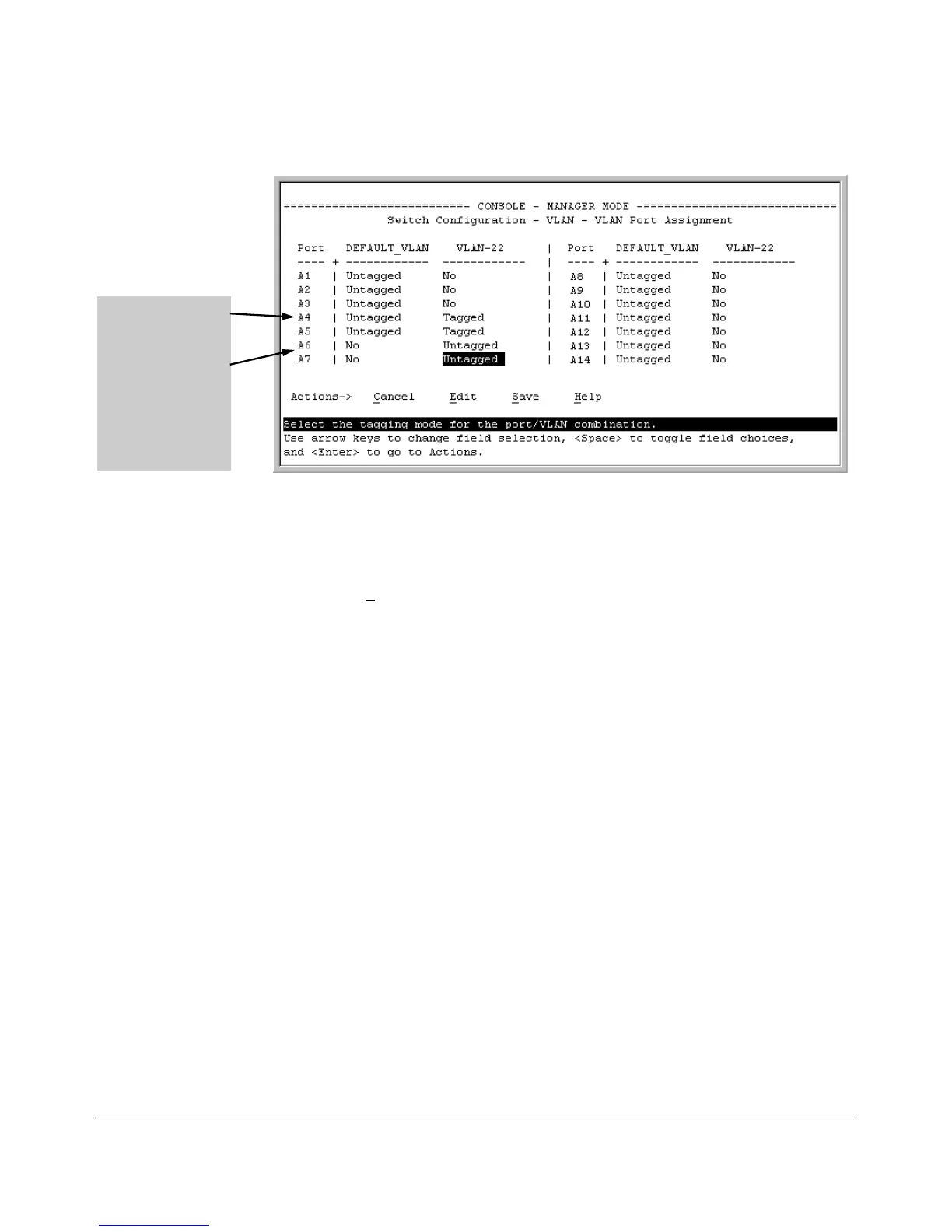

Ports A4 and A5 are
assigned to both
VLANs.
Ports A6 and A7 are
assigned only to
VLAN-22.
All other ports are
assigned only to the
Default VLAN.
Figure 2-16. Example of VLAN Assignments for Specific Ports
For information on VLAN tags (“Untagged” and “Tagged”), refer to
“802.1Q VLAN Tagging” on page 2-30.
d. If you are finished assigning ports to VLANs, press [Enter] and then [S]
(for S
ave) to activate the changes you've made and to return to the
Configuration menu. (The console then returns to the VLAN menu.)
3. Return to the Main menu.
CLI: Configuring VLAN Parameters
In the factory default state, all ports on the switch belong to the default VLAN
(DEFAULT_VLAN) and are in the same broadcast/multicast domain. (The
default VLAN is also the default primary VLAN—see “The Primary VLAN” on
page 2-7.) You can configure additional static VLANs by adding new VLAN
names, and then assigning one or more ports to each VLAN. (For the maximum
number of VLANs, refer to table 2-1 on page 2-4.) Note that each port can be
assigned to multiple VLANs by using VLAN tagging. (See “802.1Q VLAN
Tagging” on page 2-30.)
2-21
