Multimedia Traffic Control with IP Multicast (IGMP)
How IGMP Operates
Note on VLAN
Numbers
In the ProCurve switches covered in this guide, the walkmib and setmib
commands use an internal VLAN number (and not the VLAN ID, or VID) to
display or change many per-vlan features, such as the Forced Fast-Leave state.
Because the internal VLAN number for the default VLAN is always 1
(regardless of whether VLANs are enabled on the switch), and because a
discussion of internal VLAN numbers for multiple VLANs is beyond the scope
of this manual, this section concentrates on examples that use the default
VLAN.
Listing the MIB-Enabled Forced Fast-Leave Configuration
The Forced Fast-Leave configuration data is available in the switch’s MIB, and
includes the state (enabled or disabled) for each port and the Forced-Leave
Interval for all ports on the switch.
To List the Forced Fast-Leave State for all Ports in the Switch. In
the CLI, use the walkmib command, as shown below.
1. Enter either of the following walkmib command options:
walkmib hpSwitchIgmpPortForcedLeaveState
- OR -
walkmib 1.3.6.1.4.1.11.2.14.11.5.1.7.1.15.3.1.5
The resulting display lists the Forced Fast-Leave state for all ports in the
switch, by VLAN. (A port belonging to more than one VLAN will be listed
once for each VLAN, and if multiple VLANs are not configured, all ports
will be listed as members of the default VLAN.) The following command
produces a listing such as that shown in figure 4-4:
The 2 at the end of a port
listing shows that Forced
Fast-Leave is disabled on
the corresponding port.
The
1 at the end of a port
listing shows that Forced
Fast-Leave is enabled on
the corresponding port.
Ports 1-6: 6- Port 109/1000T Module in Slot A
Internal VLAN Number for the Default VLAN
Note: Internal VLAN numbers reflect the sequence
in which VLANs are created, and are not related to
the unique VID assigned to each VLAN. (See the
“Note on VLAN Numbers on page 4-19.)
Sequential Port
Numbers

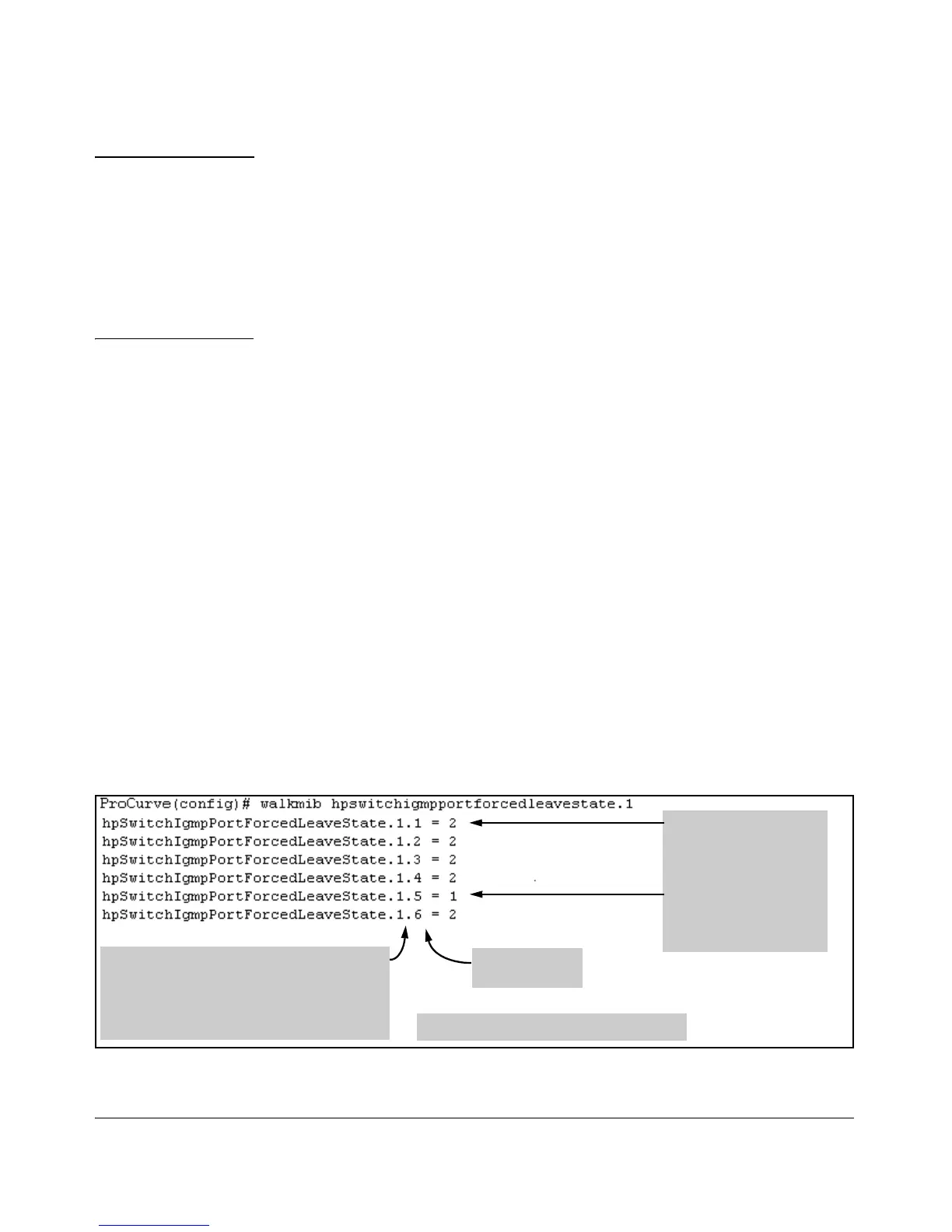

Figure 4-4. Example of a Forced Fast-Leave Listing where all Ports are Members of the Default VLAN
4-19

HP ProCurve 2610 Specifications

General

Switching Capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
MAC Address Table Size	8000 entries
Layer	Layer 2
RAM	64 MB
Flash Memory	16 MB
Jumbo Frame Support	Yes
Manageable	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 x 10/100
VLANs	256
Management	Web, CLI, SNMP
Power Supply	Internal
Operating Temperature	0°C to 40°C
Dimensions (W x D x H)	17.42 x 12.73 x 1.73 in
