Spanning-Tree Operation
802.1D Spanning-Tree Protocol (STP)
802.1D Spanning-Tree Protocol (STP)
Menu: Configuring 802.1D STP
1. From the Main Menu, select:
2. Switch Configuration …
4. Spanning Tree Operation
Use this field to select the 802.1D version of STP.

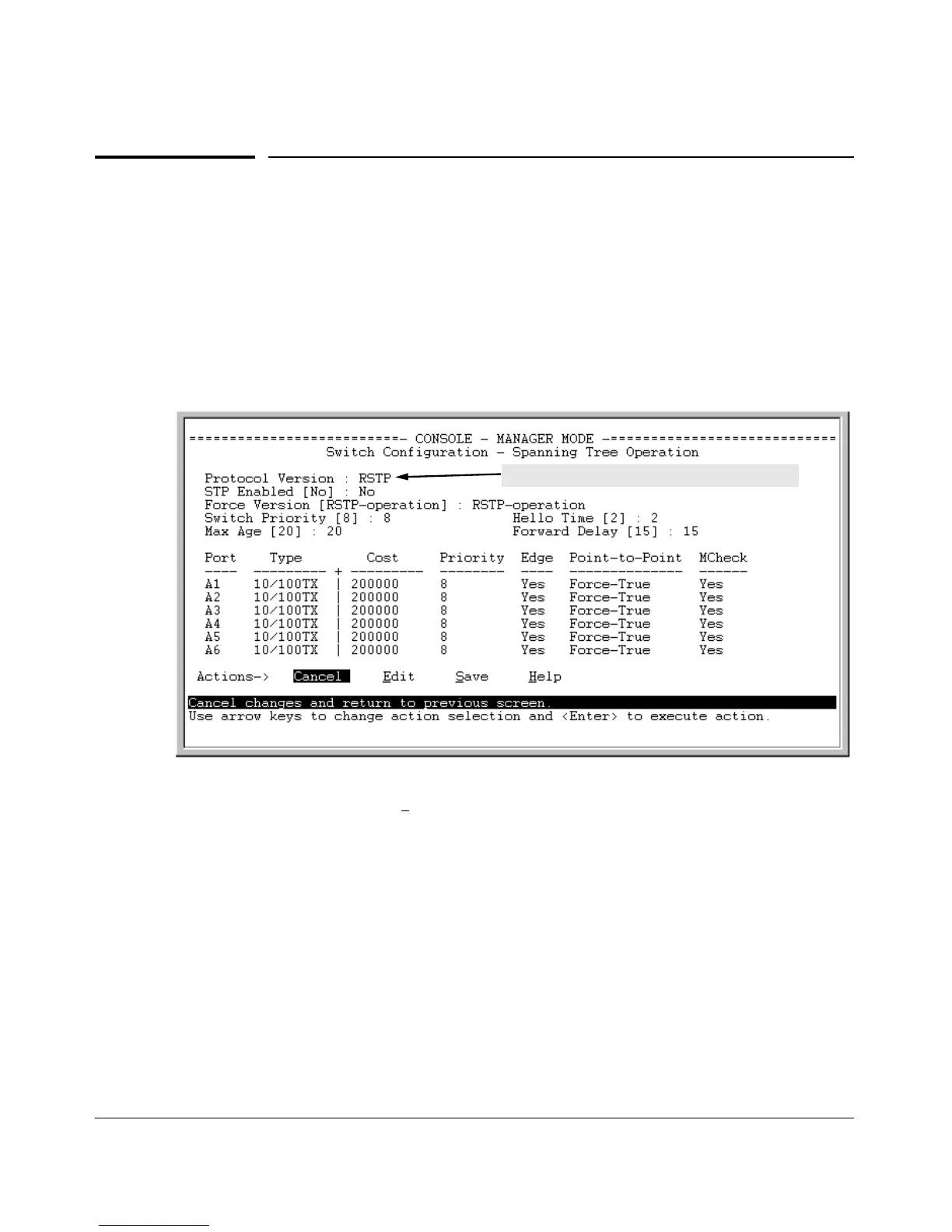

Figure 5-6. The Default “Spanning Tree Operation” Screen
2. Press
[E] (for Edit) to highlight the Protocol Version field. In the default
configuration this field is set to RSTP.
3. Press the Space bar once to change the field to STP. This changes the
Protocol Version selection to the 802.1D Spanning Tree Protocol.
4. Press
[v] to highlight the STP Enabled field.
5. Press the Space bar to select Yes. (Yes in this field means to enable
spanning-tree operation.)
5-23
