Removal and Replacement Procedures 39

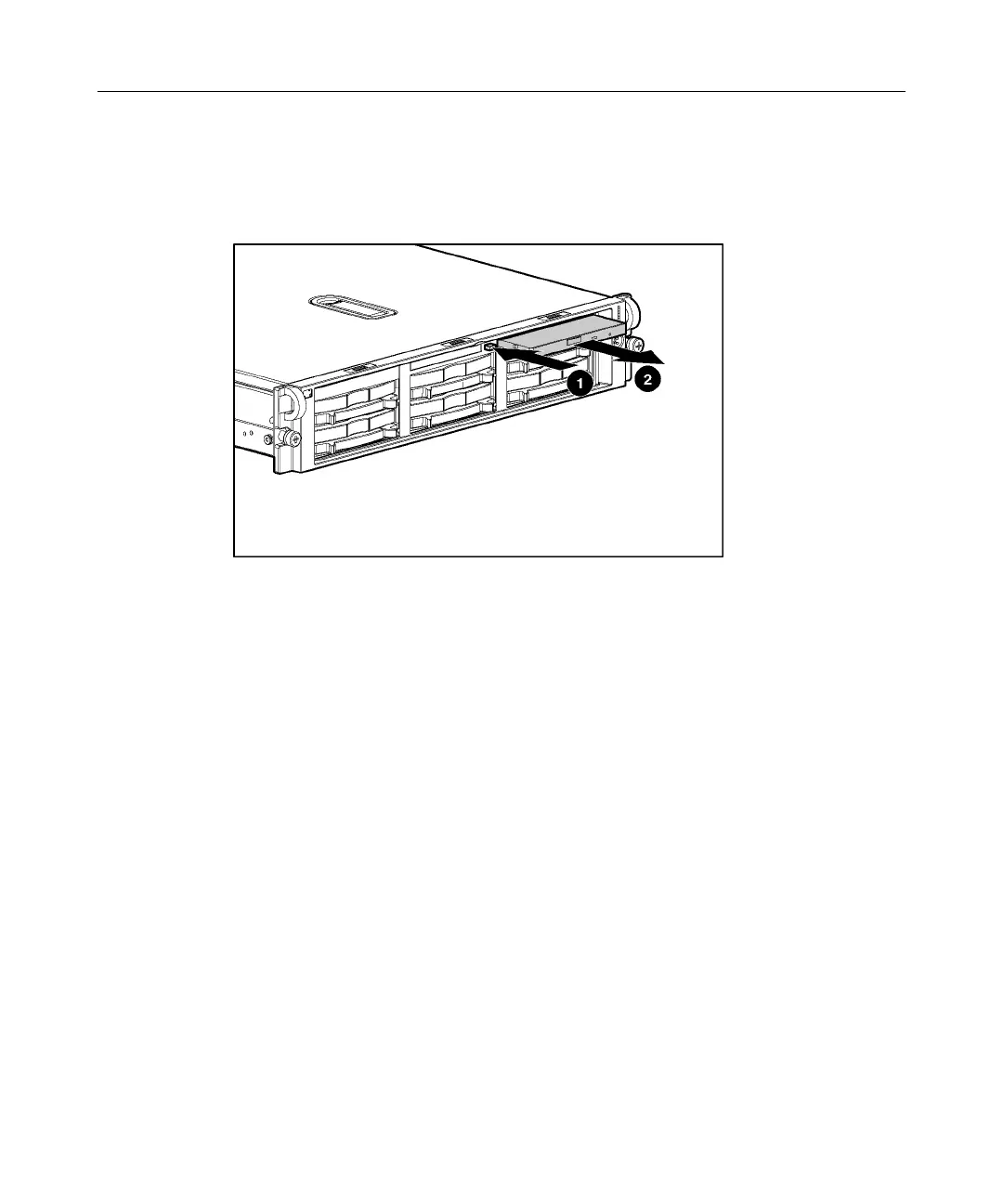

IMPORTANT: The ejector button is recessed to prevent accidental
ejection; it may be helpful to use a pen or similar shaped object to
access the button.
2. Remove the CD-ROM drive.
To replace the CD-ROM drive, slide the drive into the bay until the drive is fully
seated.
Diskette Drive
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
HP CONFIDENTIAL
File Name: 291916-3.doc Last Saved On: 5/19/03 10:29 AM
