Removal and Replacement Procedures 45
IMPORTANT: For this procedure, you do not need to remove the hot-
plug fans from the front fan bracket. When reinstalling the front fan
bracket, press the top of each fan to be sure it seats securely.
7. Remove the SCSI terminator, if installed.
8. Disconnect any cables connected to the SCSI backplane.

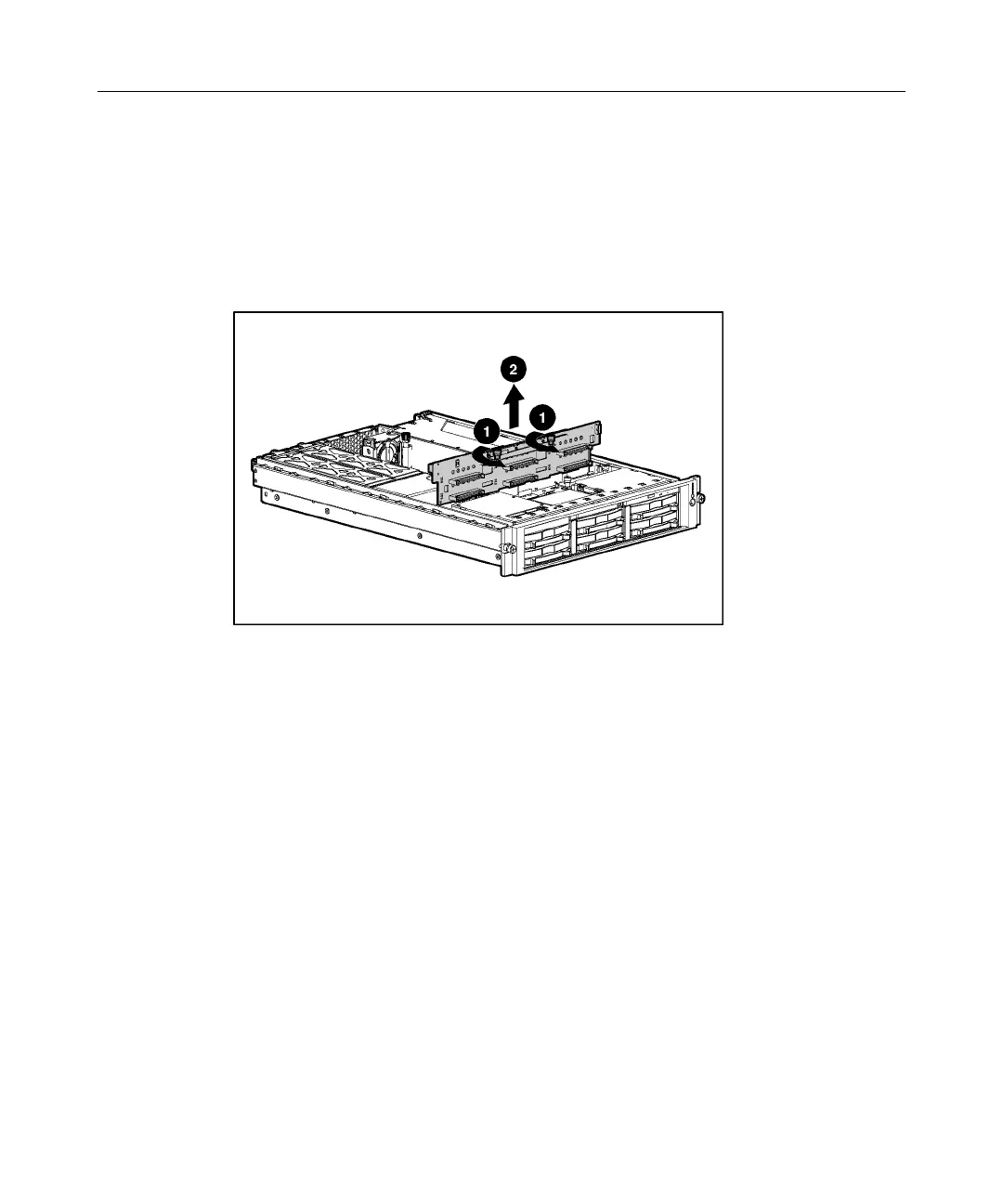

9. Remove the SCSI backplane.
To replace the component, reverse the removal procedure.
Battery-Backed Write Cache Enabler Bracket
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
