Server Component Identification 91

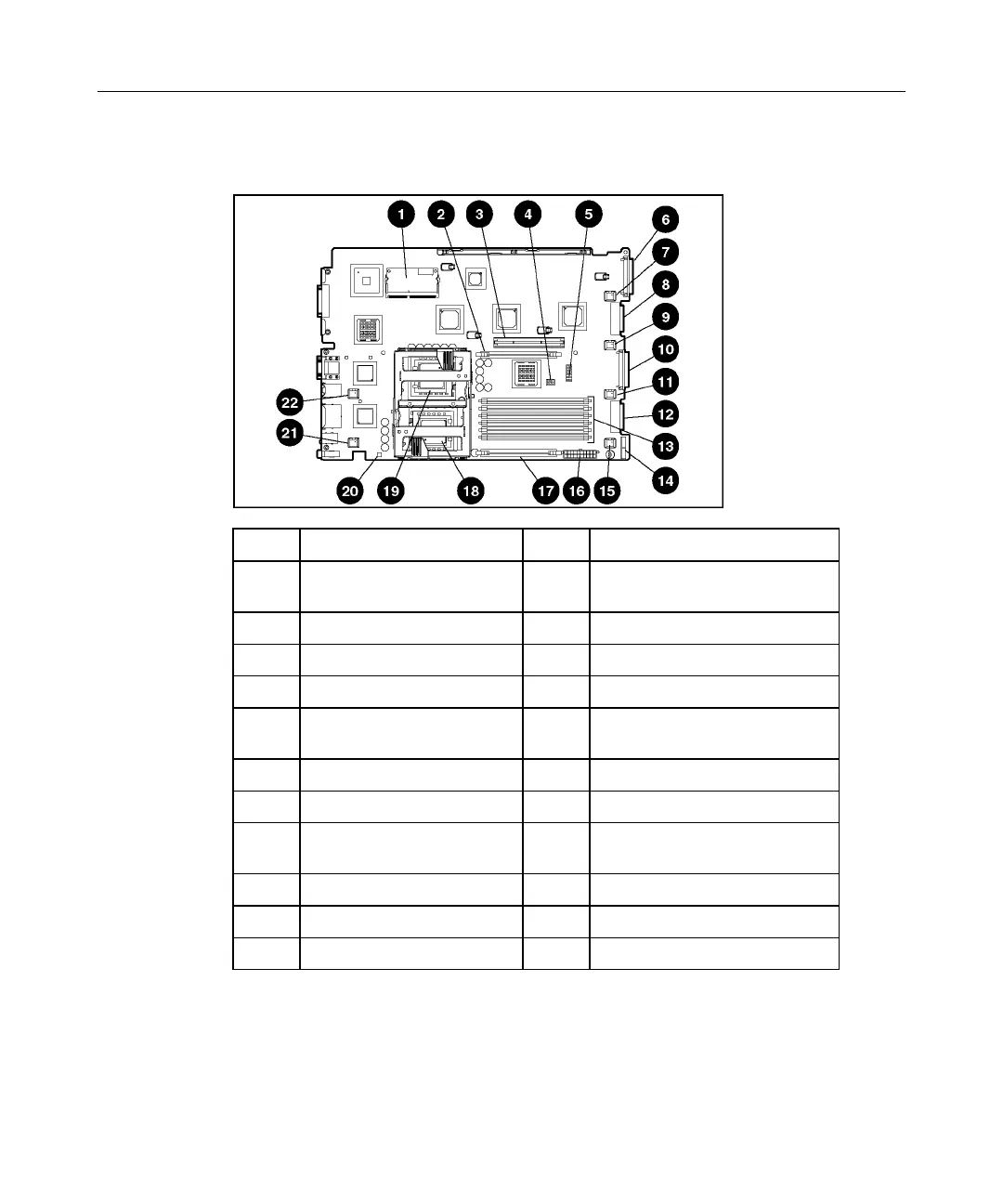

System Board Components
Item Description Item Description
1 Smart Array 5i Plus
Memory Module
12 Diskette drive system
connector
2 PPM 2 slot 13 DIMM slots (1-6)
3 PCI riser cage connector 14 Power supply signal connector
4 Chassis ID switch 15 Fan 6 connector
5 System maintenance
switch
16 System power connector
6 SCSI connector (port 2) 17 PPM 1 slot
7 Fan 3 connector 18 Processor 1 socket
8 CD-ROM drive system
connector
19 Processor 2 socket
9 Fan 4 connector 20 NMI switch
10 SCSI connector (port 1) 21 Fan 2 connector
11 Fan 5 connector 22 Fan 1 connector
