Removal and Replacement Procedures 73

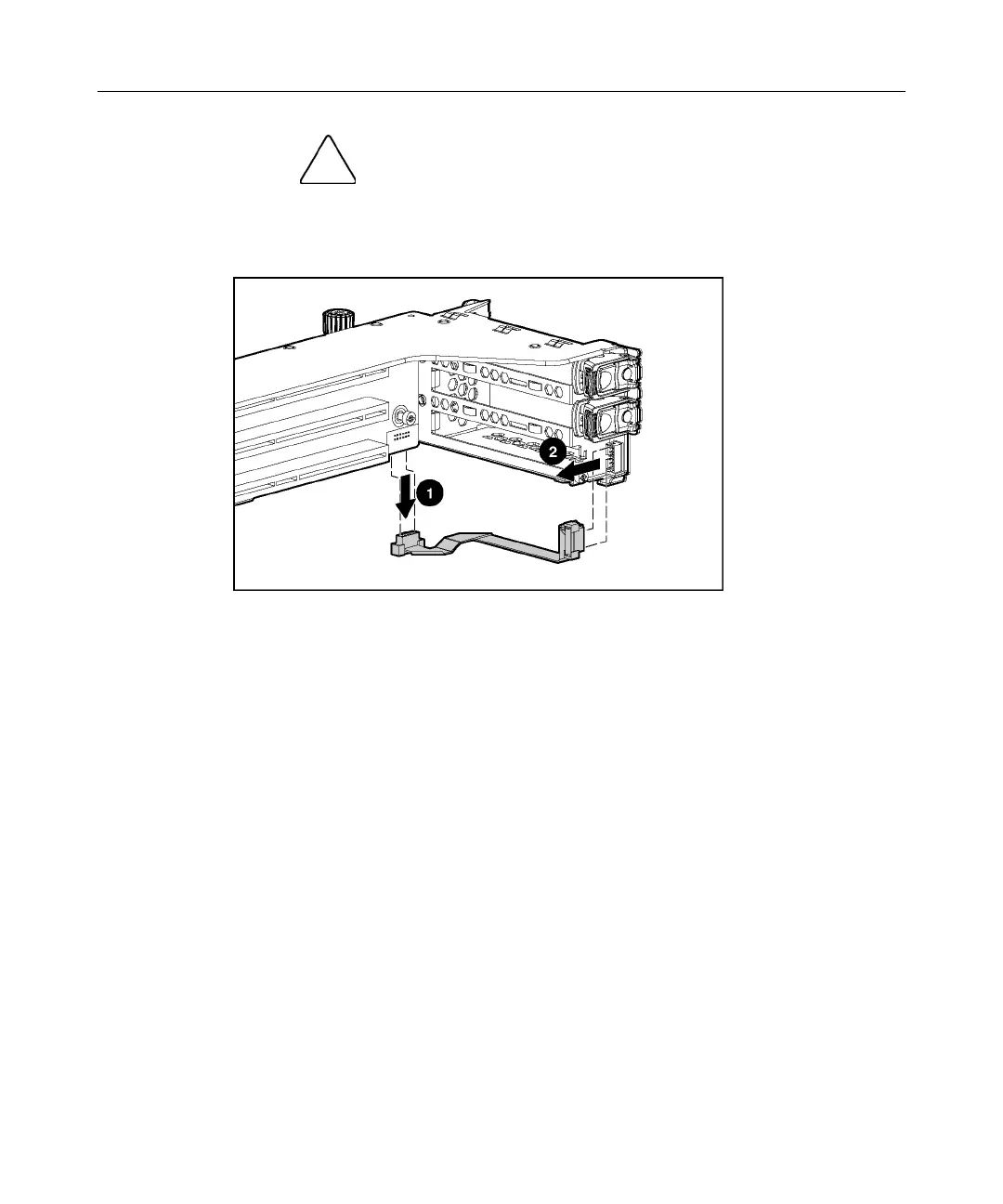

CAUTION: To prevent damage to the server or expansion
boards, power down the server and remove all AC power cords before
removing or installing the PCI riser cage.
5. Disconnect and remove the cable.
To replace the component, reverse the removal procedure.
Optional Long SCSI Cable
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
4. Open the locking latch on the front fan bracket.
