Removal and Replacement Procedures 71

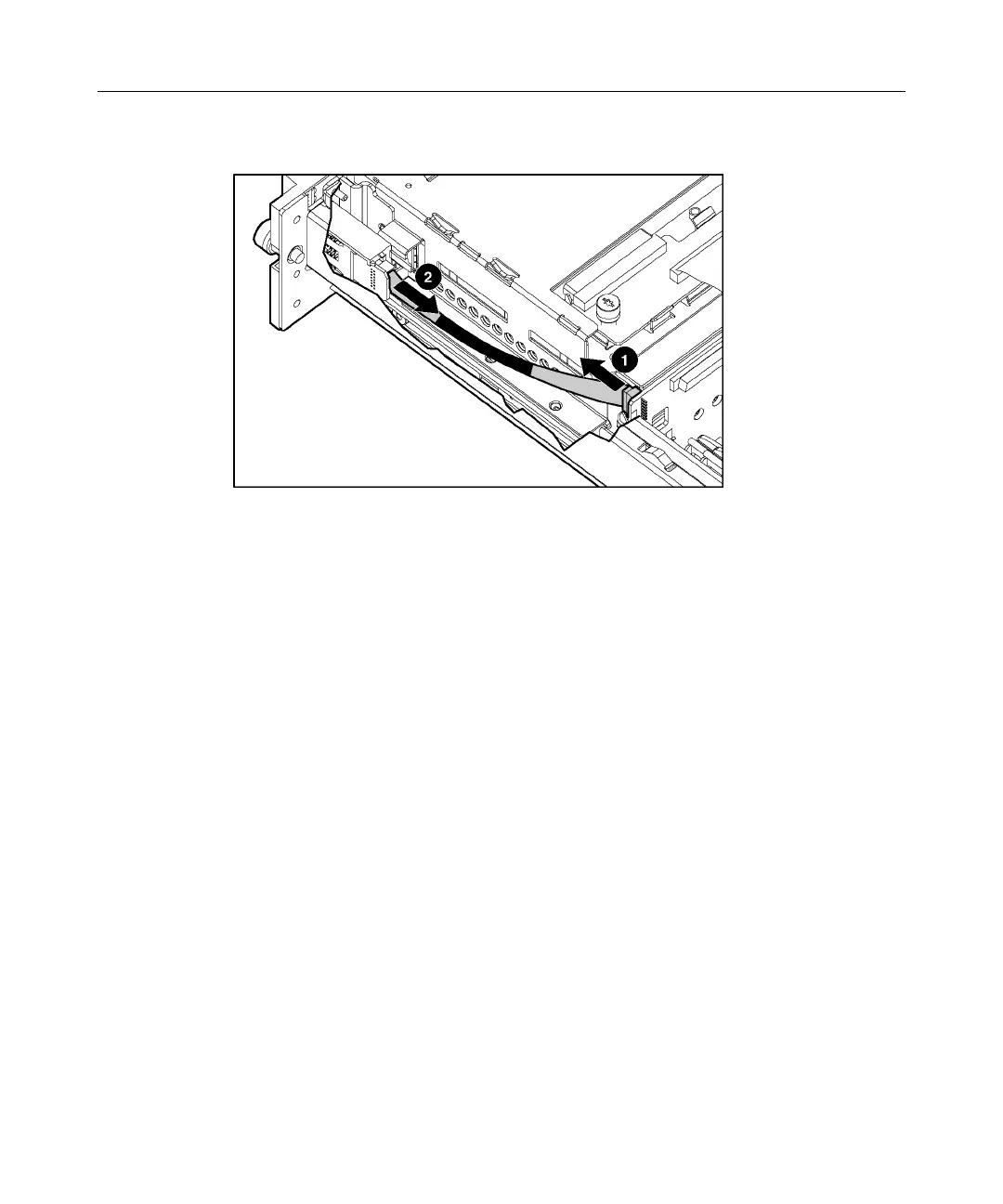

5. Disconnect and remove the cable.
To replace the component, reverse the removal procedure.
CD-ROM and Diskette Drive System Cables
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
4. Remove the front fan bracket ("Front Fan Bracket" on page 43).
HP CONFIDENTIAL
File Name: 291916-3.doc Last Saved On: 5/19/03 10:29 AM
