72 HP ProLiant DL380 Generation 3 Server Maintenance and Service Guide
IMPORTANT: For this procedure, you do not need to remove the hot-
plug fans from the front fan bracket. When reinstalling the front fan
bracket, press the top of each fan to be sure it seats securely.

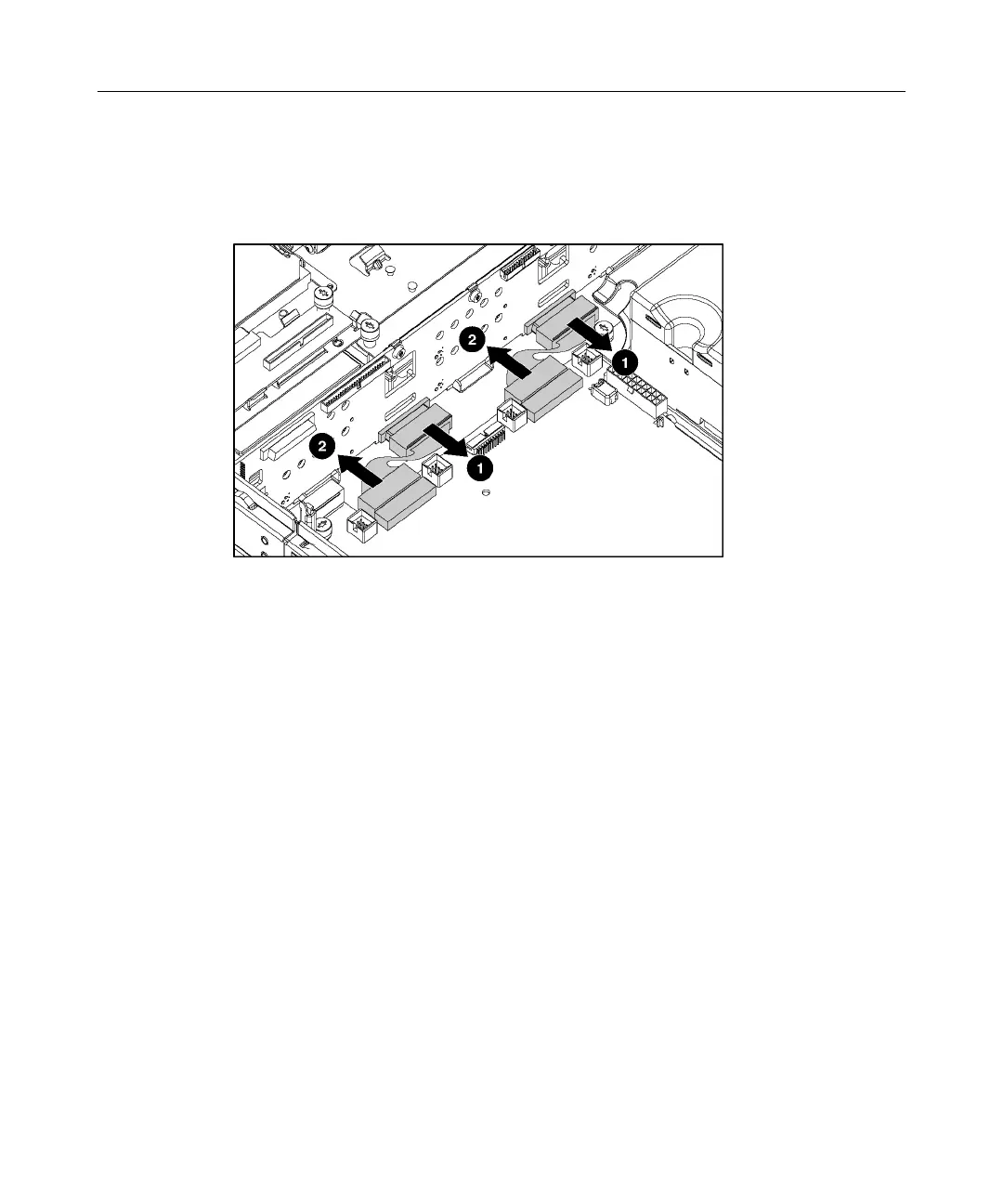

5. Disconnect and remove the cable.
To replace the component, reverse the removal procedure.
PCI Hot Plug Backplane Cable
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
4. Remove the PCI riser cage ("PCI Riser Cage" on page 47).
