Removal and Replacement Procedures 43
Front Fan Bracket
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).

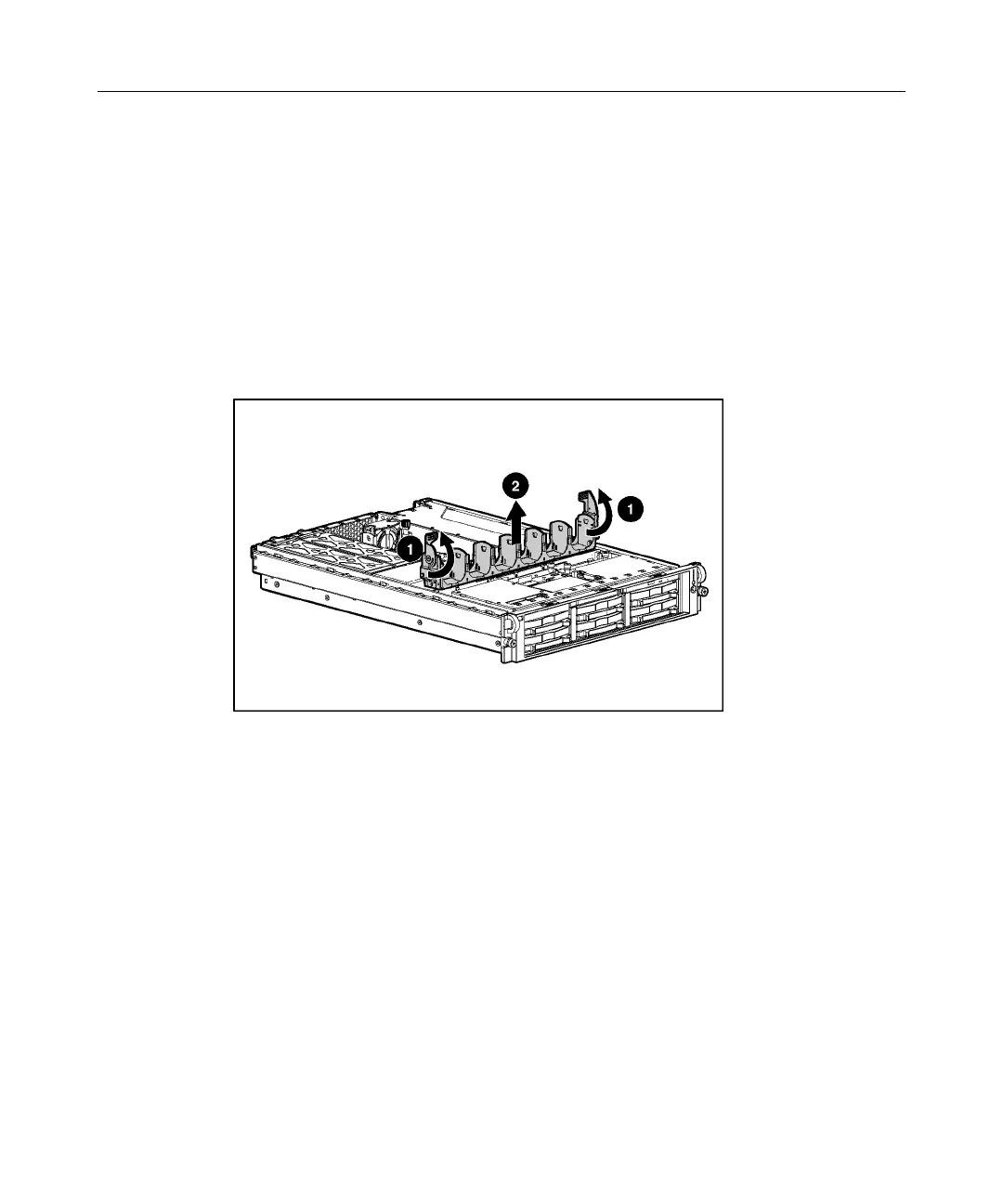

4. Remove the front bracket.
5. Remove all hot-plug fans from the front fan bracket.
To replace the front fan bracket, reverse the removal steps and press down on the
top of each fan to be sure it is seated properly.
SCSI Terminator
To remove the component:
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend or remove the server from the rack ("Extending the Server from the
Rack" on page 18, "Removing the Server from the Rack" on page 21).
3. Remove the access panel ("Removing the Access Panel" on page 21).
