Removal and Replacement Procedures 47

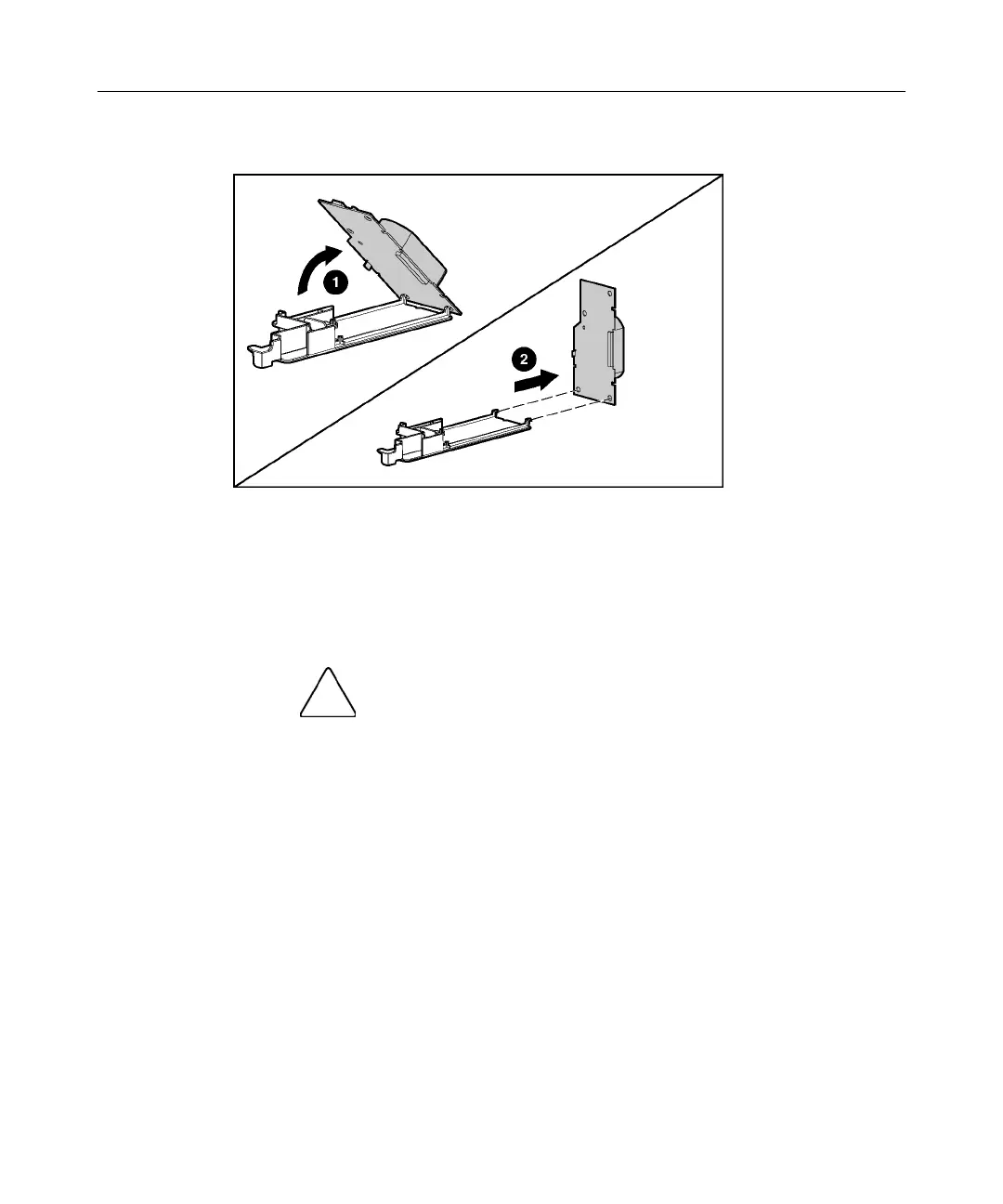

6. Remove the battery module from the bracket.
To replace the component, reverse the removal procedure.
PCI Riser Cage
To remove the component:
CAUTION: To prevent damage to the server or expansion
boards, power down the server and remove all AC power cords before
removing or installing the PCI riser cage.
1. Power down the server ("Powering Down the Server" on page 20).
2. Extend the server from the rack, if applicable ("Extending the Server from
the Rack" on page 18).
3. Remove the access panel ("Removing the Access Panel" on page 21).
4. Disconnect any internal or external cables connected to any existing
expansion boards.
5. Lift the PCI riser cage thumbscrews (1) and turn them counter-clockwise (2).
6. Remove the PCI riser cage (3).
