HP ProLiant ML150

Specifications
System Board Layout

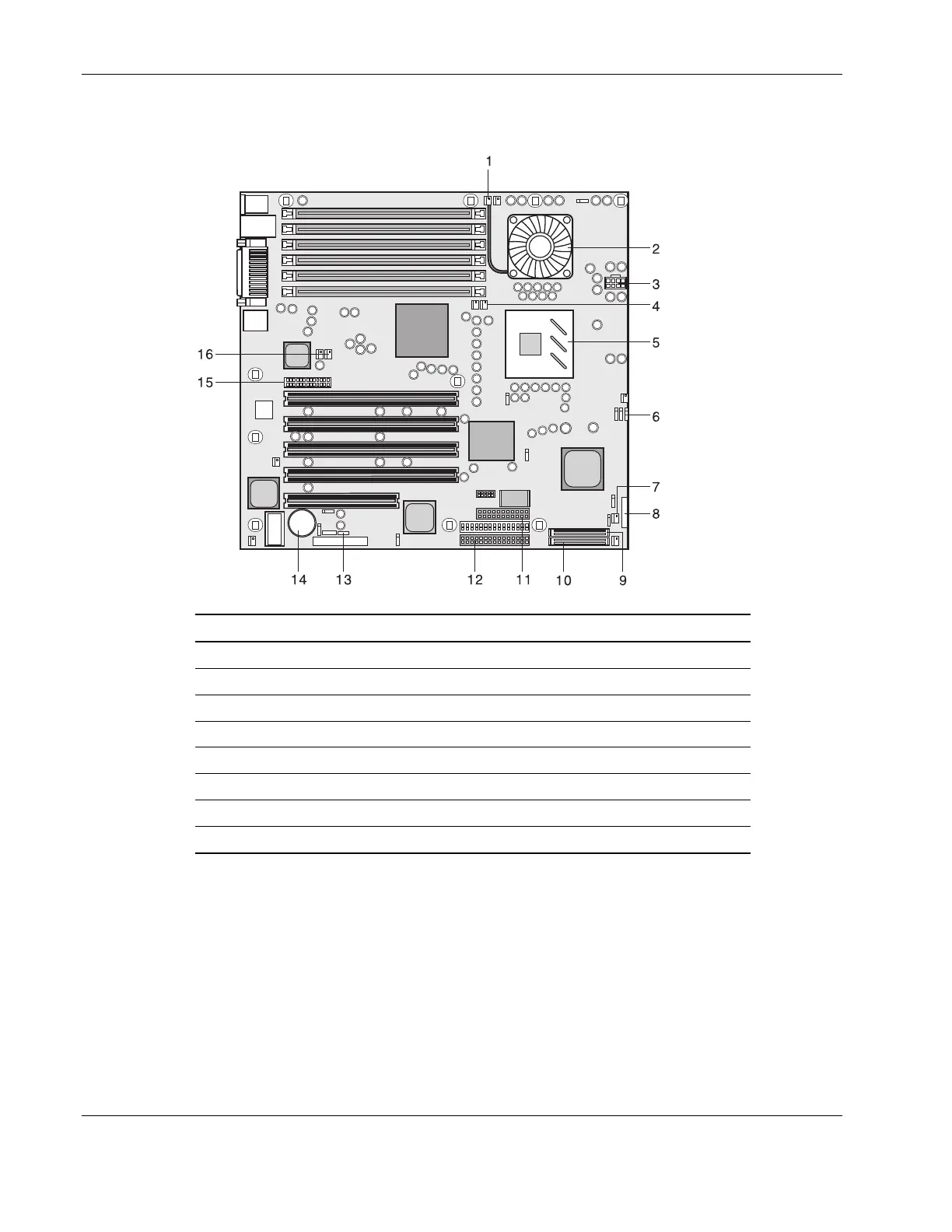

Figure 7-1: System board components
Item Description Item Description
1 CPU 1 fan 9 SCSI A
2 Processor 1 (CPU 1) 10 SCSI B
3 8-pin CPU power connector 11 FDD
4 CPU 2 fan 12 Primary IDE
5 Processor 2 (CPU 2) 13 Wake-on-LAN
6 Activity /Link header 14 Battery
7 System fan (option) 15 Power connector
8 Front panel connector 16 System fan (option)
