Installing and Configuring
Replacing a CD-ROM Drive
WARNING: Always wear a wrist strap and use a static-dissipating work surface
connected to the chassis when handling components. Be sure the metal of the wrist
strap contacts your skin.
The flexible disk, CD-ROM, and optional disk do not have protective shields; they are
ESD sensitive. Caution must be taken when removing them to avoid electrical shock.
Install and remove connectors carefully, and avoid displacing any of the pins.
Use the following steps to replace a CD-ROM drive:
1. If the server is operating, log off all users, back up files, and power down the server.
2. Disconnect the power cord and any external cables connected to the server. If necessary,
label each one to expedite re-assembly.
3. Open the upper bezel and side panel.
4. Disconnect the power and signal cable connector from inside the side panel.
5. Press the two latches of the drive inward and, holding the disk by its sides, gently slide
the drive out of the chassis. Refer to Figure 2-6.

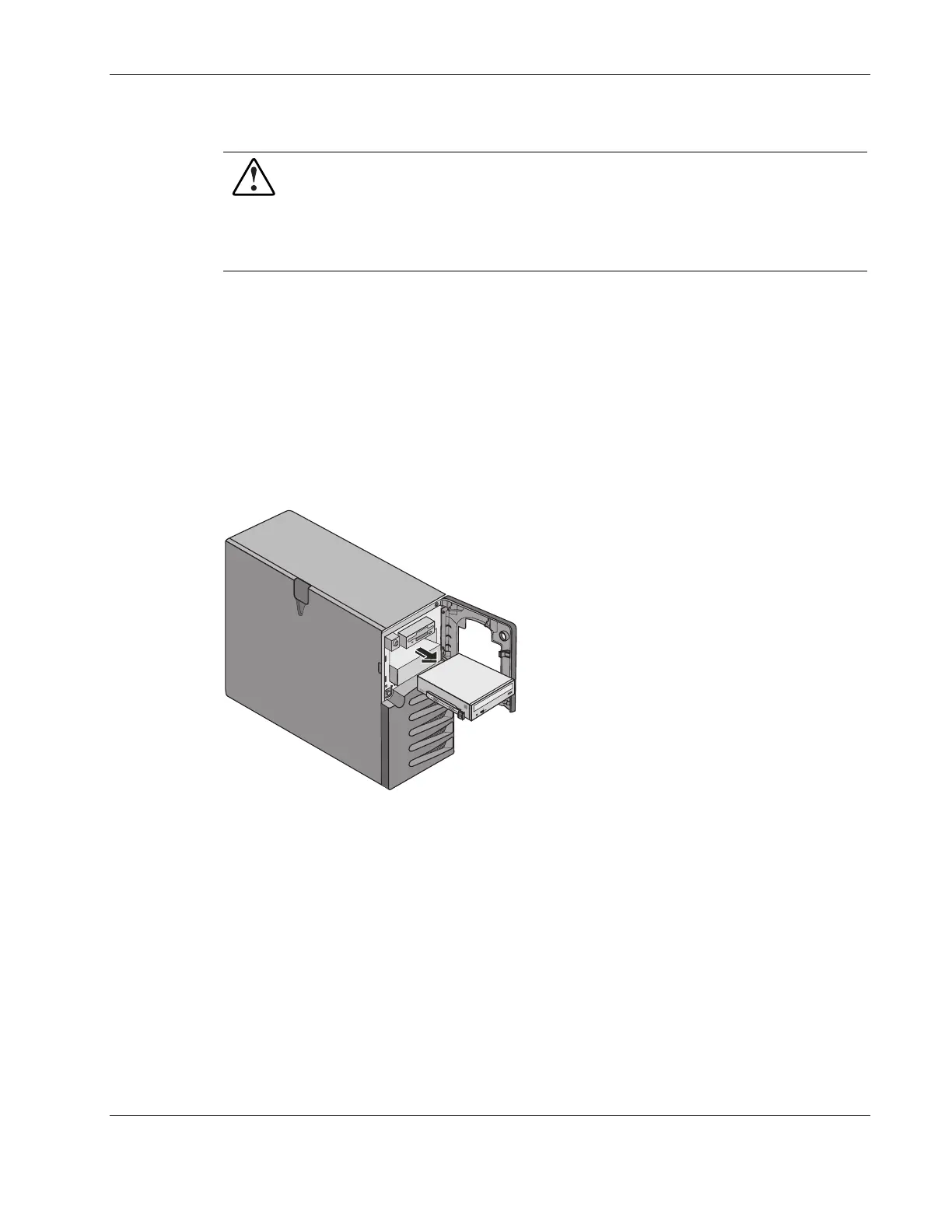

Figure 2-6: Removing the CD-ROM drive
6. Gently slide the new drive into the opening until the eject mechanism clicks.
7. Connect the power and signal cable to the new drive.
8. Close the upper bezel and side panel.
9. Reconnect the external cables and power cord.
10. Power up the server and return to normal operation.
HP ProLiant ML150 Server Operations and Maintenance Guide 2-9
HP CONFIDENTIAL Codename: Stone Soup Part Number: 343329-001 Last Saved On: 8/14/03 10:09 AM

HP ProLiant ML150 Specifications

General

Tcase	72.8 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Scalability	2S
Processor cache	15 MB
Processor cores	6
Processor model	E5-2603V3
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor codename	Haswell
Motherboard chipset	Intel C610
Number of QPI links	2
Processor frequency	1.6 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600 MHz
Memory bandwidth supported by processor (max)	51 GB/s
Maximum internal memory supported by processor	768 GB
HDD size	- \
RAID support	-
HDD interface	Serial ATA
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Memory slots	16x DIMM
Internal memory	4 GB
Memory clock speed	2133 MHz
Maximum internal memory	256 GB
Memory layout (slots x size)	1 x 4 GB
Graphics card family	NVIDIA
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Chassis type	Rack (1U)
Power supply	550 W
Processor ARK ID	83349
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
PCI Express slots version	3.0

Weight and Dimensions

Depth	620 mm
Width	200 mm
Height	432.6 mm
Weight	22230 g
