WARNING: The power supply will continue to provide standby current to the HP server
until the power cord is disconnected.
3. Open the side panel.
NOTE: It is not necessary to remove the system board from the HP server to install the additional
DIMM memory.
4. Select a DIMM slot for the desired DIMM. Refer to Figure 2-11.

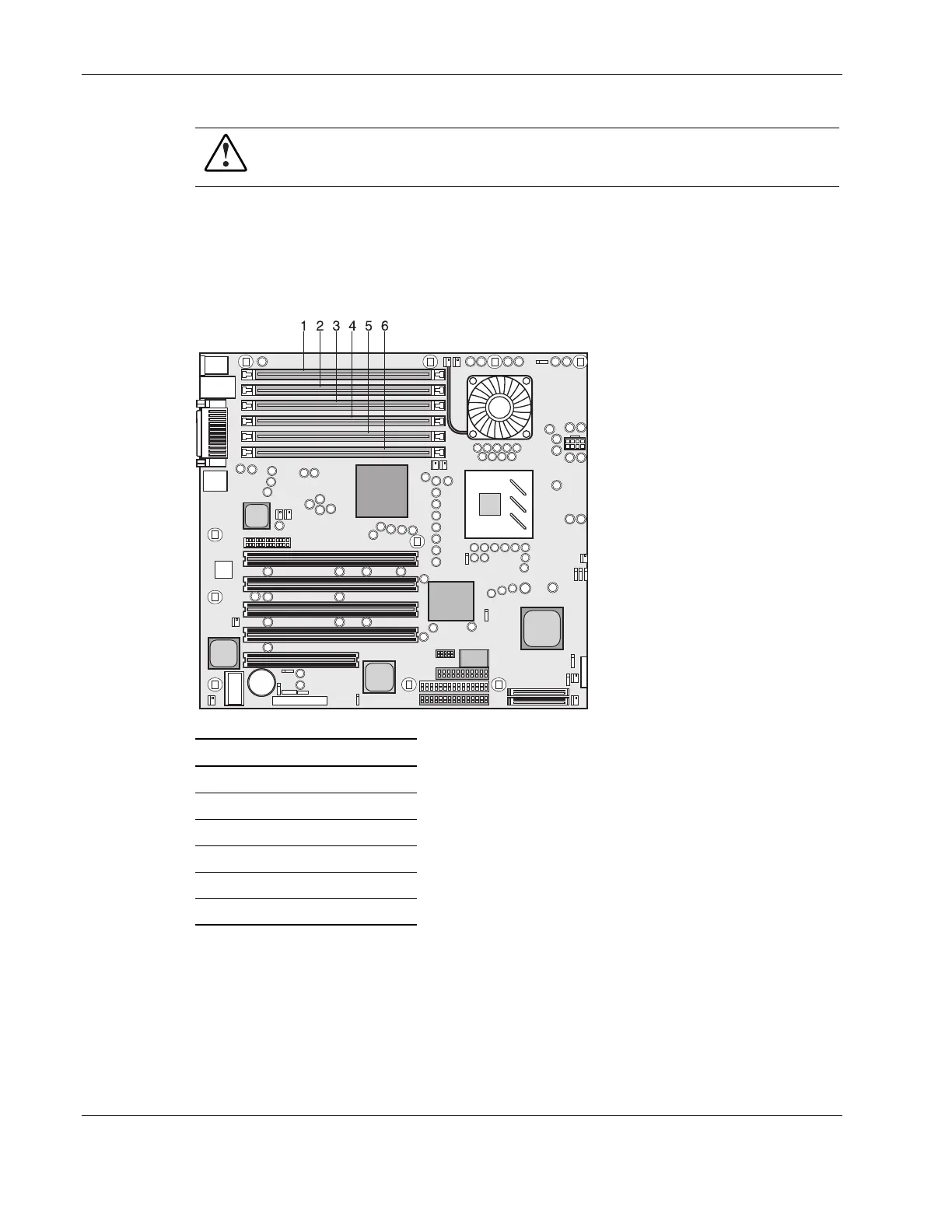

Figure 2-11: DIMM locations on system board
Item Description
1 DIMM slot 1
2 DIMM slot 2
3 DIMM slot 3
4 DIMM slot 4
5 DIMM slot 5
6 DIMM slot 6
