7. Do one of the following:

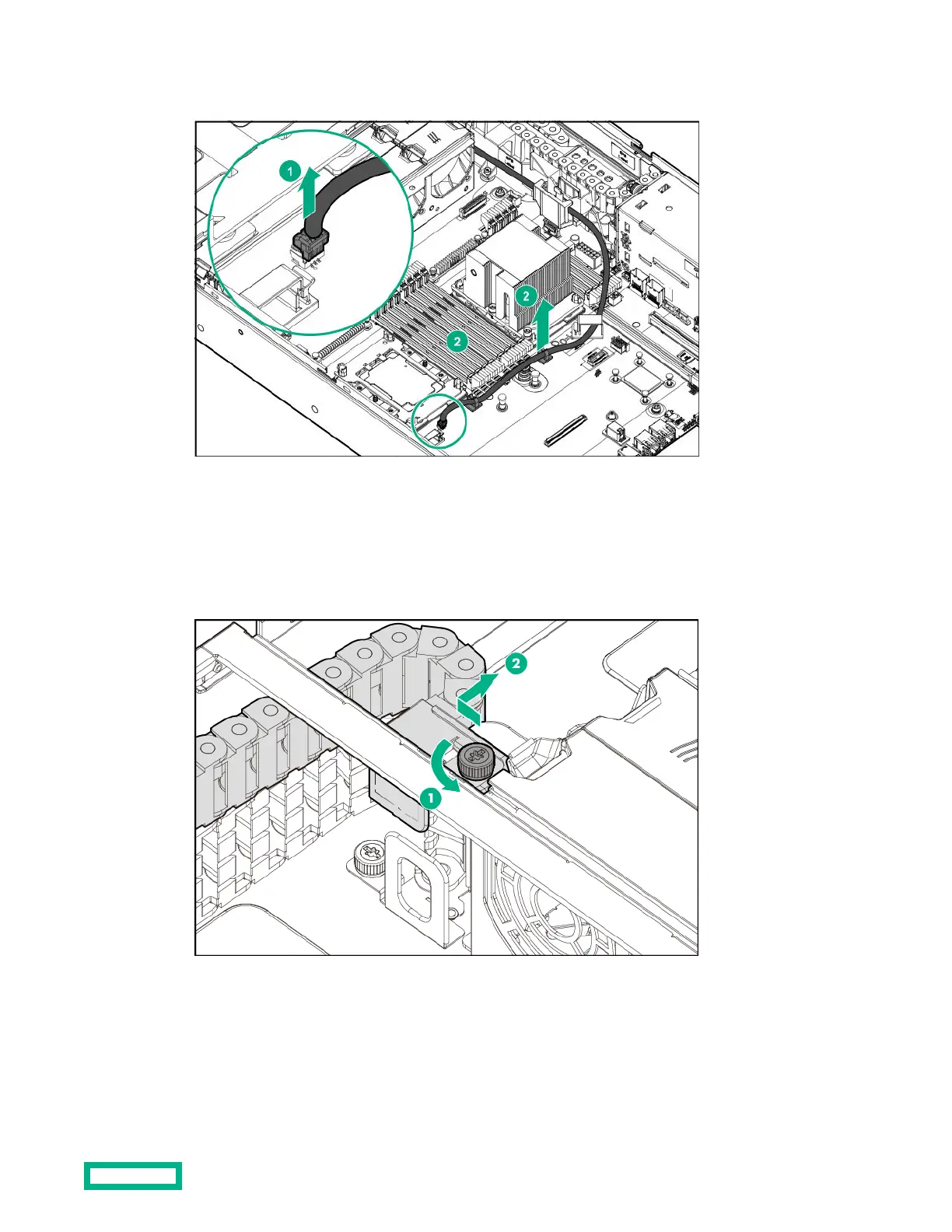

• Release the preinstalled Mini SAS x4 cable from the system board cable clips.
• If a rear drive cage is connected to the internal drive cage backplane, disconnect the preinstalled Mini SAS x4 cable
from the rear drive cage backplane.
8.
Remove the cable management holder.
9.
Release the cable track brackets:
a.
Loosen the front SFF drive cage cable track thumbscrew, and then release the bracket from the chassis.
b. Loosen the internal SFF drive cage cable track thumbscrew, and then release the bracket from the chassis.
