HPE Apollo 4200 Gen10

Item Front drive cage backplane Internal drive cage backplane
1 P3 connector (reserved) P3 connector
2 P1 connector P1 connector
3 P2 connector P2 connector

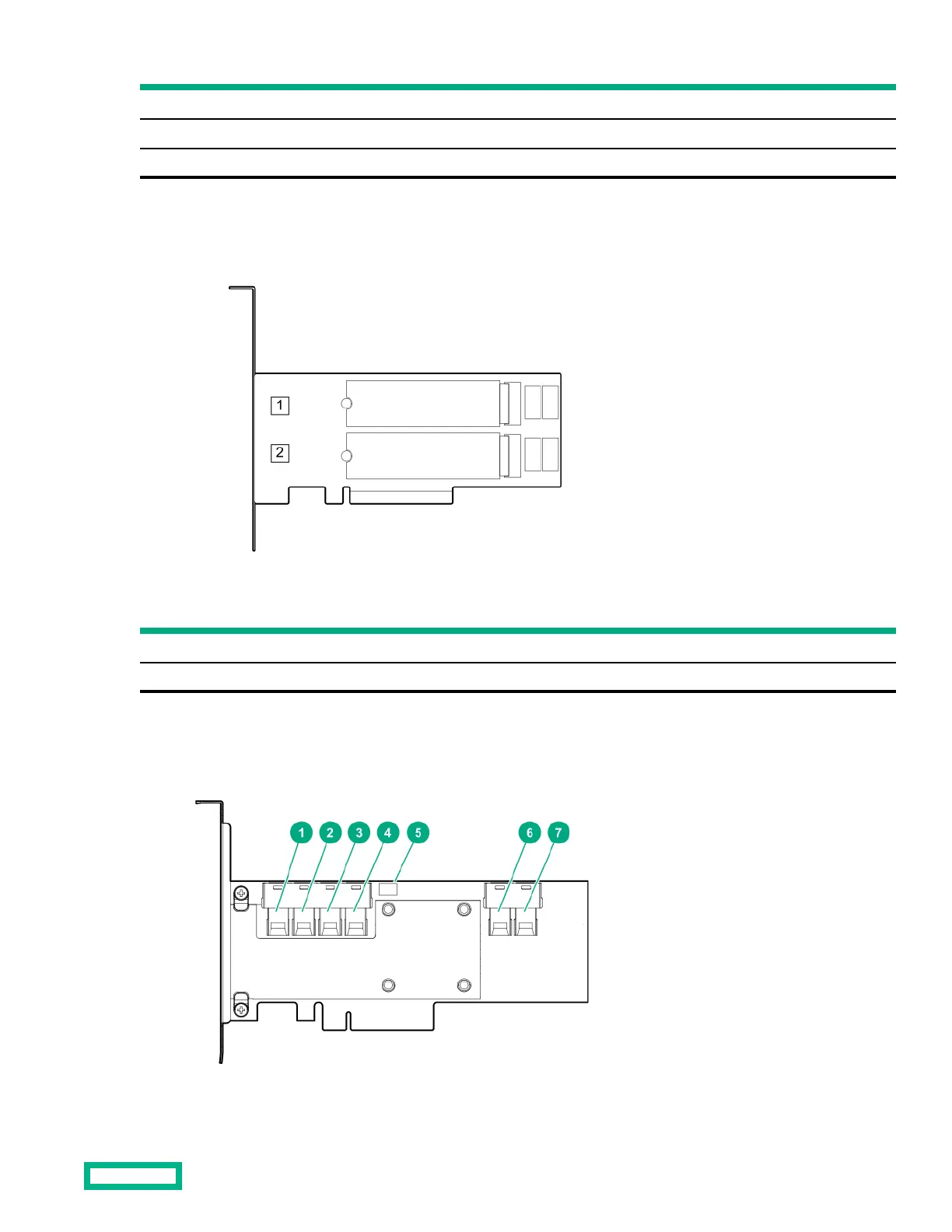

M.2 SSD slot numbering
Item Description
1 M.2 slot 1, port 1i
2 M.2 slot 2, port 2i
HPE Smart Array P824i-p MR Gen10 Controller
Component identification
