Procedure
1. Power down the system (Power down the system).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the system.
3. Remove the system from the rack (
Remove the system from the rack).
4. Place the system on a flat, level surface.
5. Remove the access panel (Remove the access panel).
6. If expansion boards with internal cabling are installed in the PCI riser cage, disconnect all internal cables from the
expansion boards to remove the cage from the system.

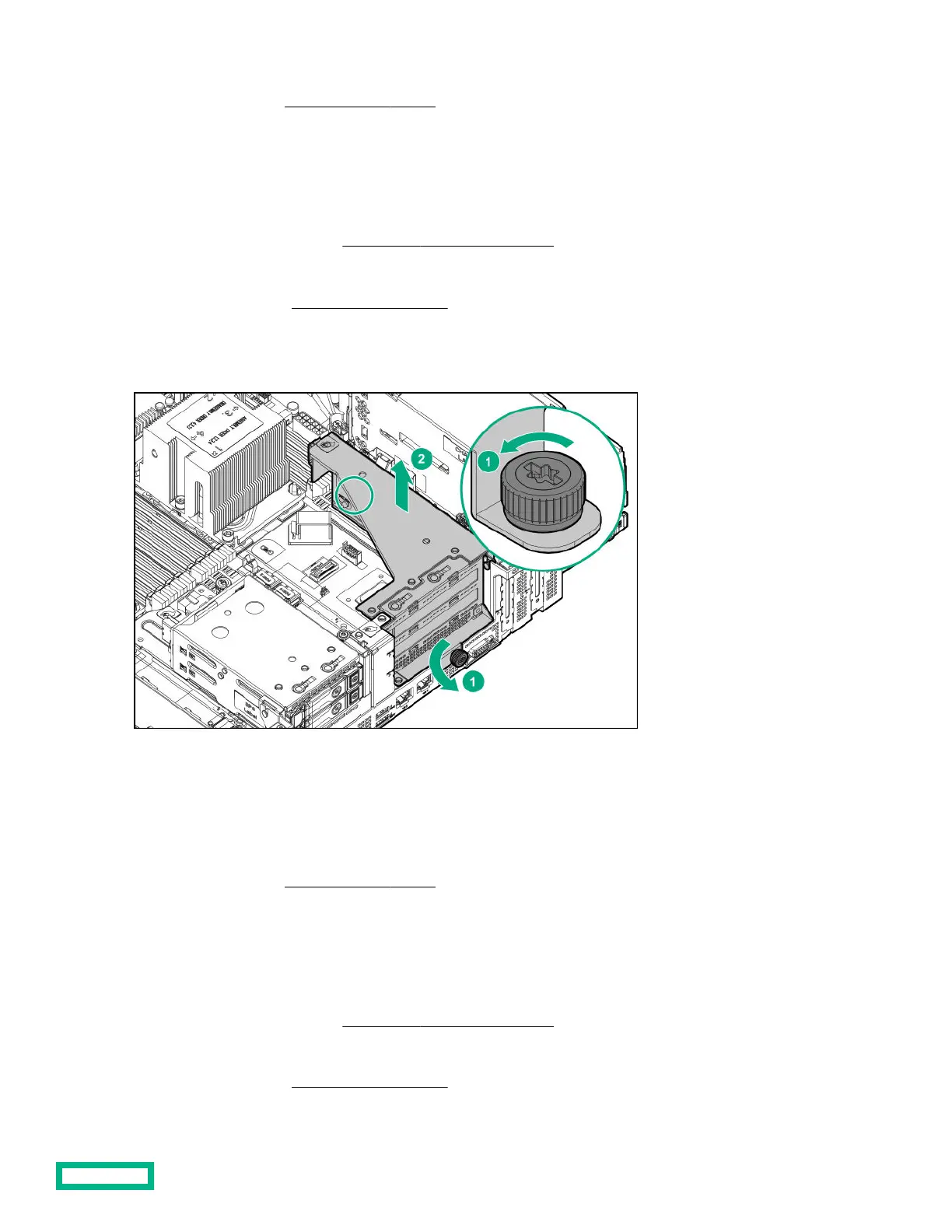

7. Grasp the PCIe riser cage and lift it out of the chassis.
To replace the component, reverse the removal procedure.
Open the cable management holder
Procedure
1. Power down the system (Power down the system).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the system.
3. Remove the system from the rack (
Remove the system from the rack).
4. Place the system on a flat, level work surface.
5. Remove the access panel (
Remove the access panel).
Removal and replacement procedures
44
