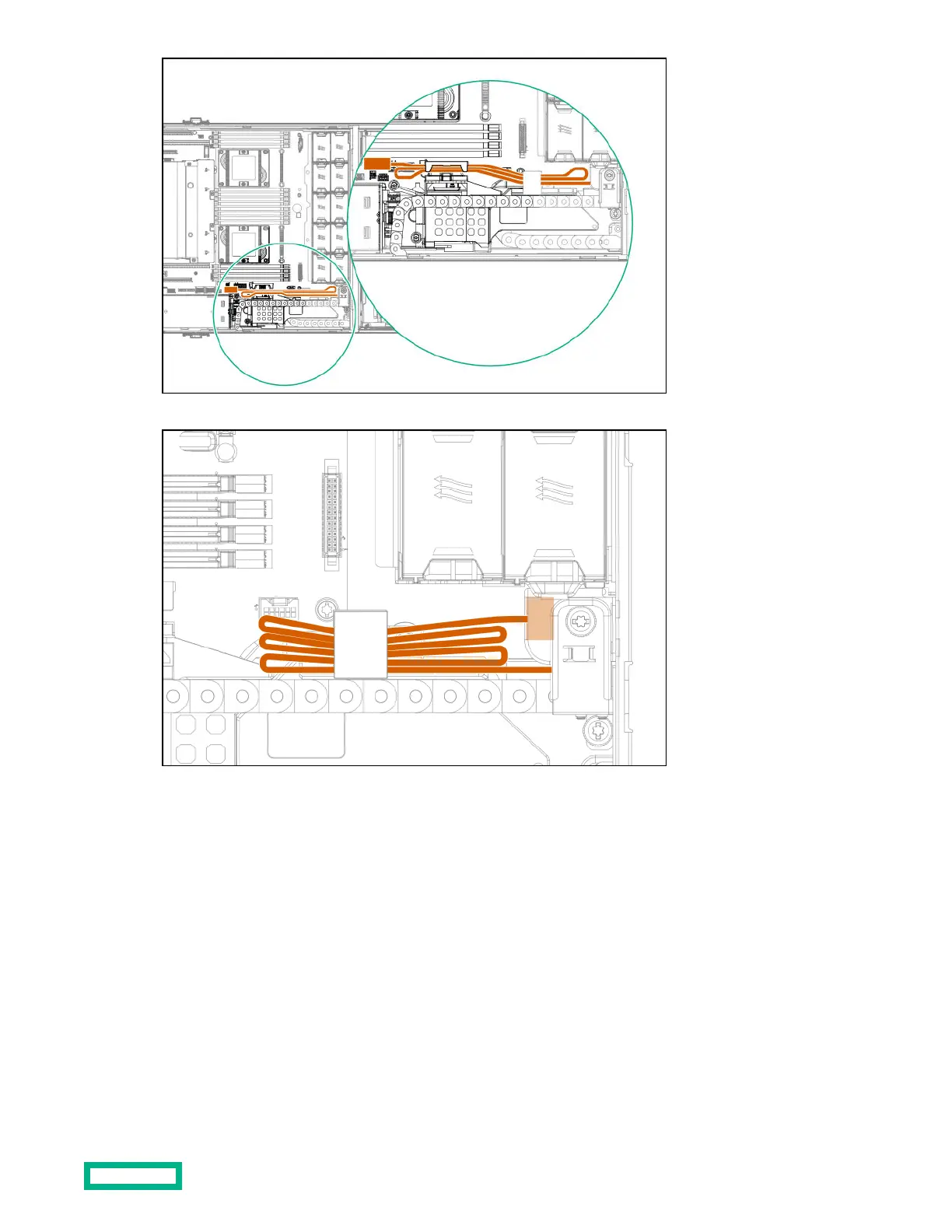

• Unused P3 cable (not routed through either slot on the cable guard)
Internal drive cage cabling
• Internal drive cage P1 and P2 connected to P3 and P4 on an HPE Smart Array P816i-a SR Gen10 controller installed on
the system board
Cabling
125
