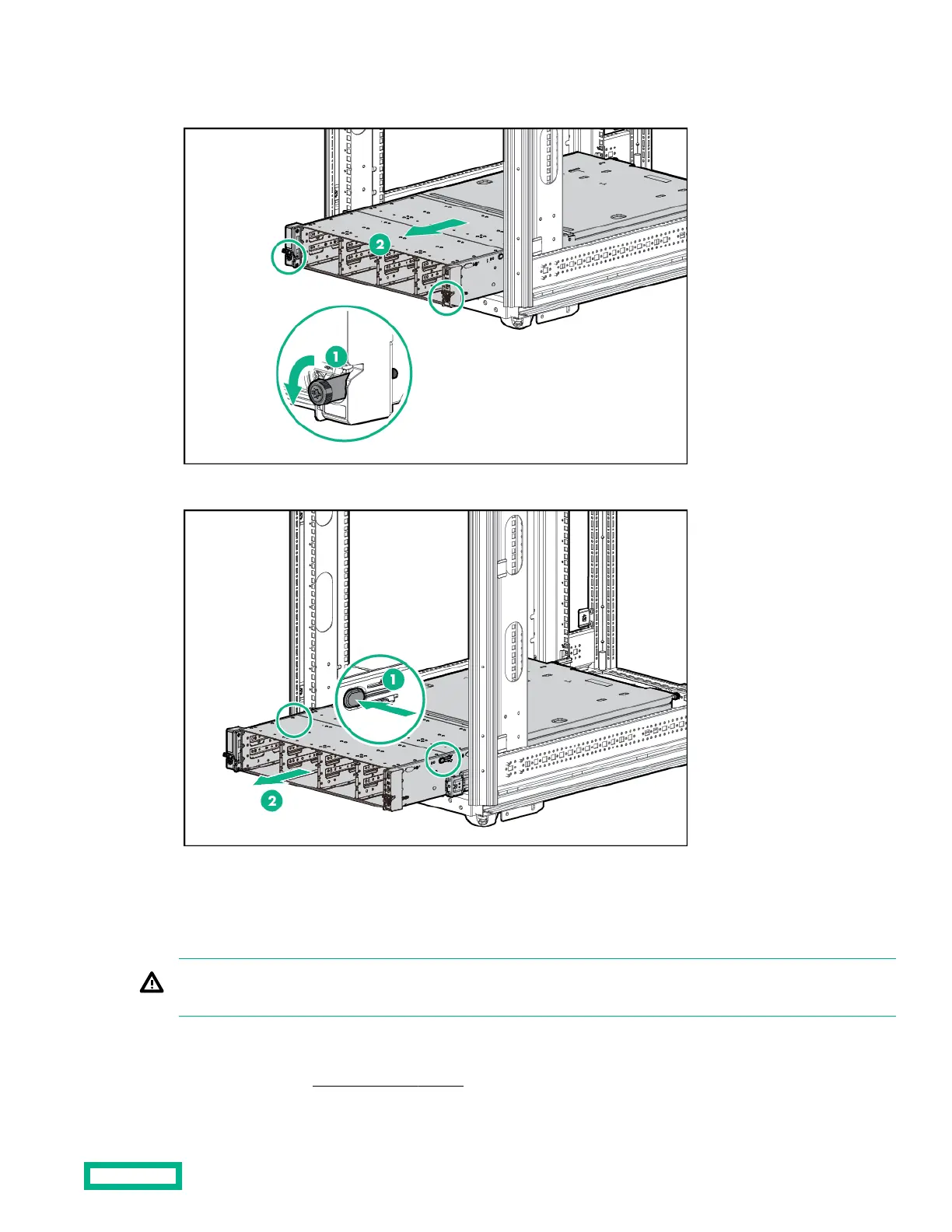

a. Loosen the rack ear thumbscrews.
b. Pull the thumbscrews to extend the system out of the rack until the rack rail lock is engaged.
c.
Press the system release latches, and then slide the system out of the rack.
6. Place the system on a flat, level surface.
Remove the access panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives, power supplies, and internal system
components to cool before touching them.
Procedure
1. Power down the system (Power down the system).
2. Remove all power:
Removal and replacement procedures
39
