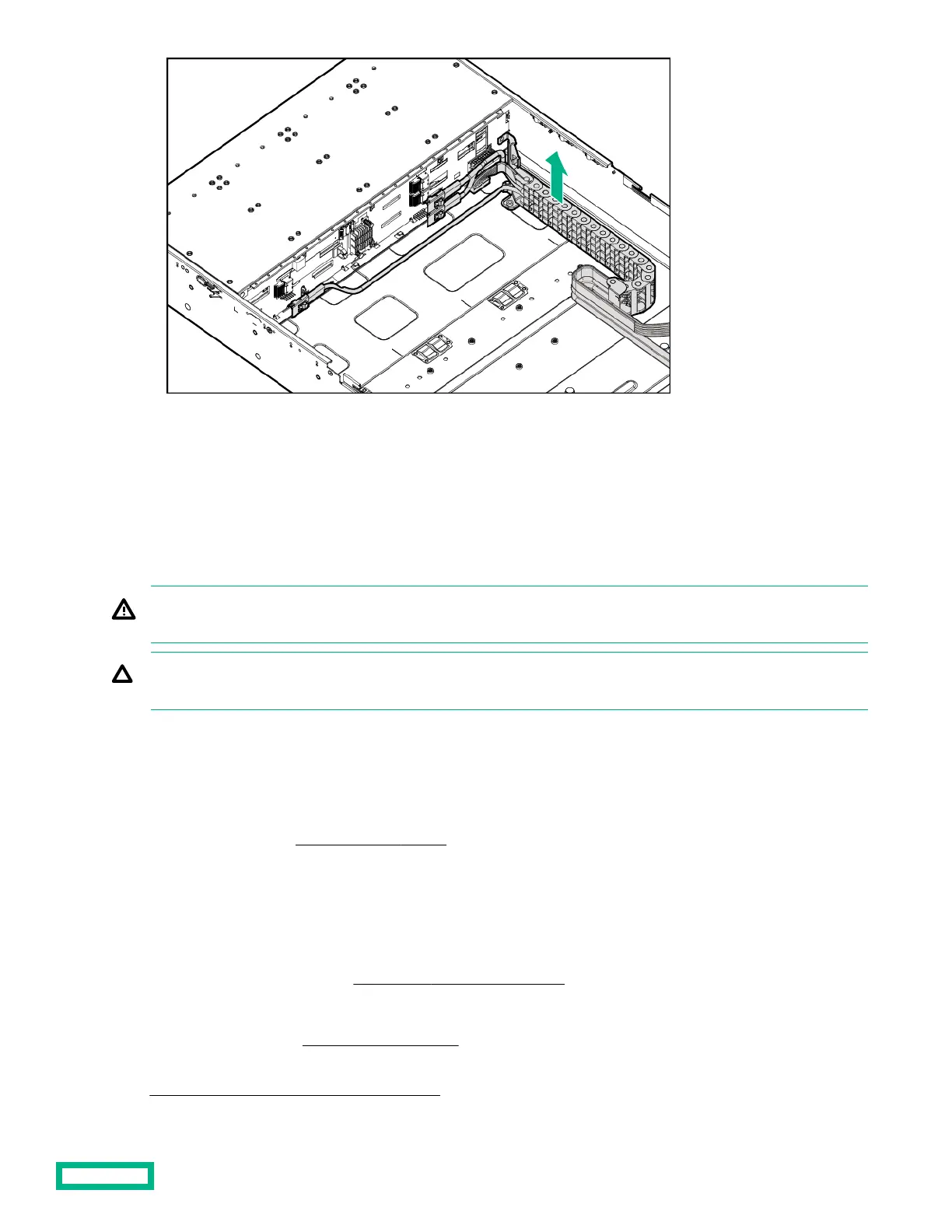

To replace the component, reverse the removal procedure.
Removing and replacing the SFF drive cable track assemblies
The Mini SAS and power cables used in the 48-bay SFF front drive cages are enclosed in two plastic cable track assemblies.
The top cable track connects to the front SFF drive cage backplane; the bottom cable track connects to the internal SFF drive
cage backplane.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components
to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static precautions before beginning
any installation, removal, or replacement procedure. Improper grounding can cause electrostatic discharge.
Prerequisites
Before you perform this procedure, make sure that you have the components included with the hardware kit.
Procedure
1.
Power down the system (
Power down the system).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the system.
3. Remove the system from the rack (
Remove the system from the rack).
4. Place the system on a flat, level surface.
5. Remove the access panel (
Remove the access panel).
6. Pull down the front drive cage release latches and use them to completely extend the front drive cages from the chassis
(Extend the front drive cages out of the chassis).
Removal and replacement procedures
106
