HPE Apollo 4200 Gen10

Item Description
1 Release lever
2 Activity ring
3 Do Not Remove LED
1
4 Request to Remove NVMe Drive button
1
Do not remove an NVMe SSD from the drive bay while the Do Not Remove button LED is flashing. The Do Not Remove button
LED flashes to indicate the device is still in use. Removal of the NVMe SSD before the device has completed and ceased signal/
traic flow can cause loss of data.

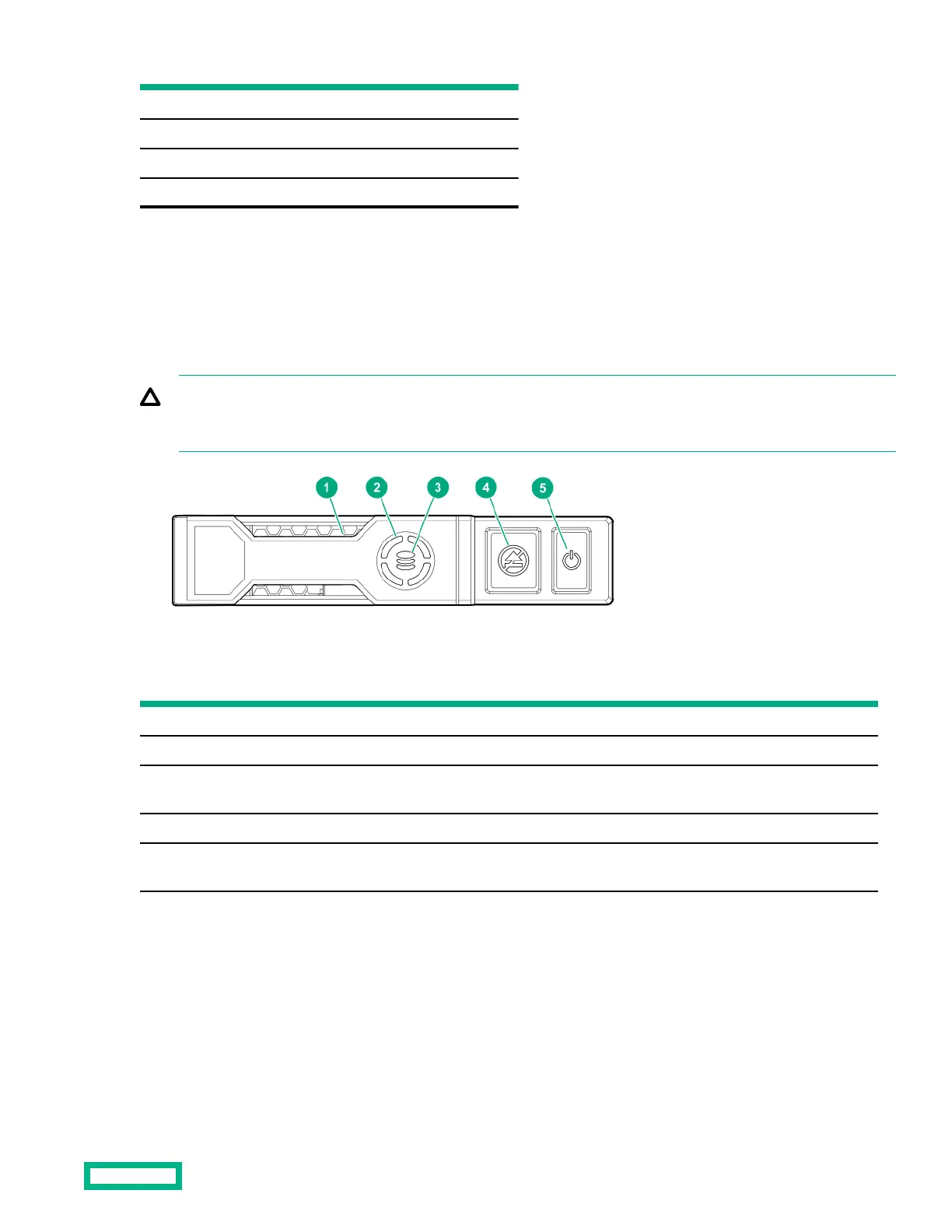

Smart Carrier NVMe (SCN) drive LED definitions
The NVMe drive is a PCIe bus device. A device attached to a PCIe bus cannot be removed without allowing the device and bus
to complete and cease the signal/traic flow.
CAUTION: Do not remove an NVMe drive from the drive bay while the Do not remove LED is flashing. The Do not
remove LED flashes to indicate that the device is still in use. Removing the NVMe drive before the device has completed
and ceased signal/traic flow can cause loss of data.
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
2 Activity
ring
Rotating green Drive activity
O No drive activity
3 Drive
status
Solid green The drive is a member of one or more logical drives.
Table Continued
Component identification 165
