Item Component Status Definition
Off Drive removed from the
PCIe bus and can be
ejected.
4 Power LED
Solid green Drive is powered on and
configured in system.
Do not remove the drive.
Flashing green Ejection request
pending. Do not remove
the drive.
Off Drive removed from the
PCIe bus and can be
ejected.
5 Power button — Momentary press to
request drive removal
from PCIe bus and
ejection. Drive removal
request can be denied
by operating system.
6 Do Not Remove button — Releases the release
lever for removal and
insertion.
Upon NVMe SSD insertion, an LED initiation sequence will be visible - lighting each LED in the carrier in
sequence from left to right. The sequence will cycle until the drive is recognized by the system. When the
SSD is recognized by the system - the Do Not Remove LED will be solid white and the Power LED will be
solid green.

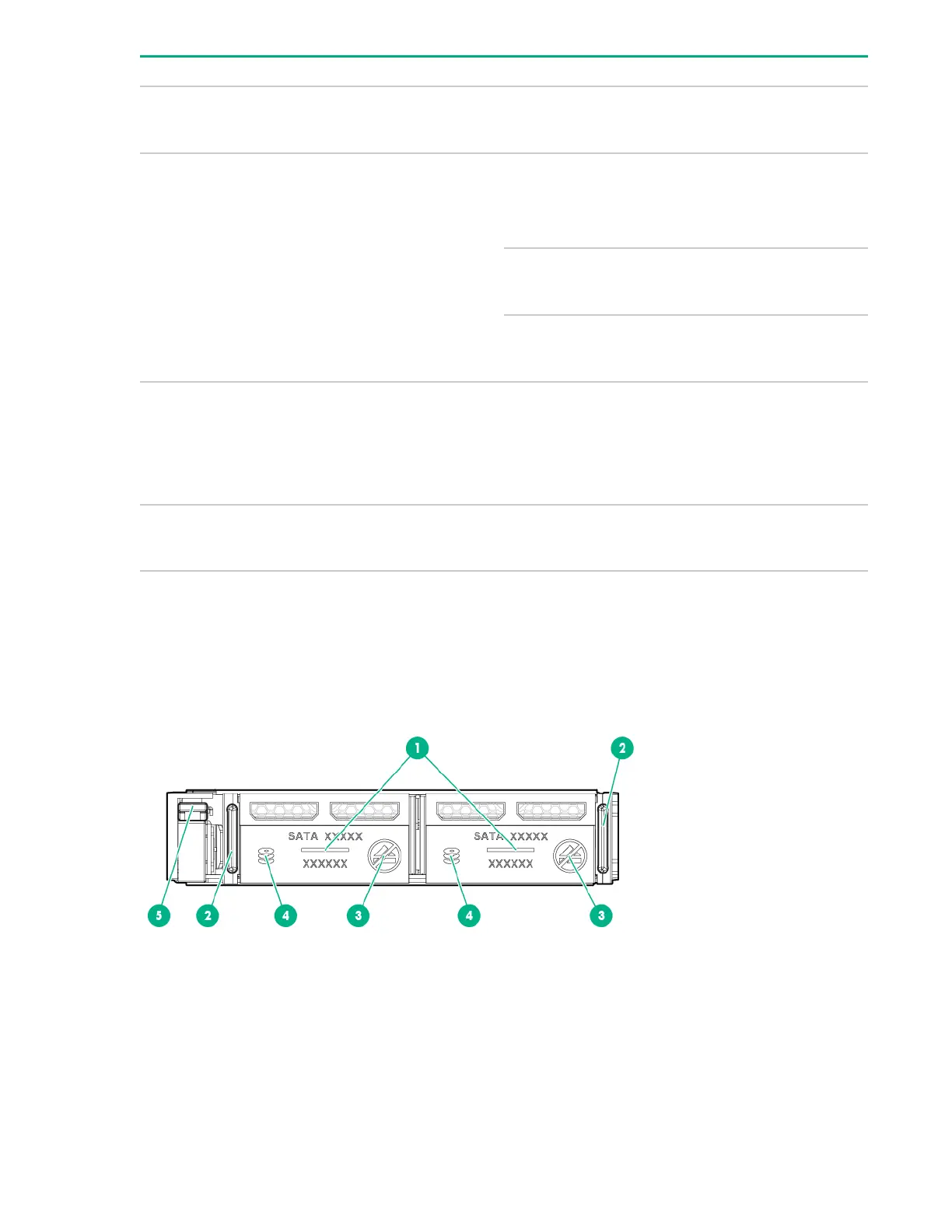

SFF flash adapter components and LED definitions
Component identification 11
