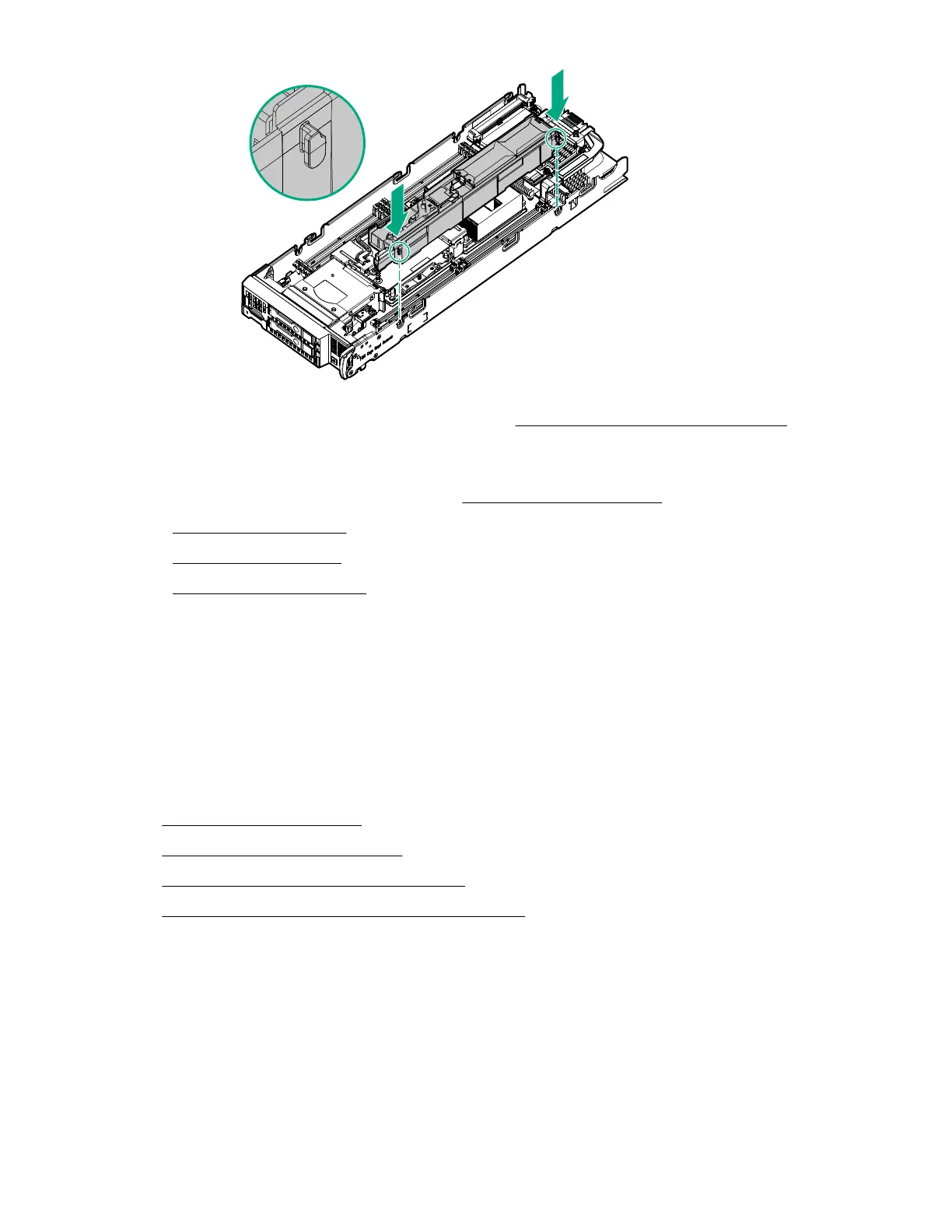

11. If removed, install the direct connect SATA cable (Install the direct connect SATA cable on page
31).
12. If removed, install the internal USB drive.
To locate the internal USB connector, see System board components on page 13.
13. Install the access panel on page 23.
14. Install the server blade on page 42.
15. Power up the server blade on page 21.
Mezzanine card option
Optional mezzanine cards are classified as Type A mezzanine cards and Type B mezzanine cards. The
type of the mezzanine card determines where it can be installed in the server blade.
• Install Type A mezzanine cards on Mezzanine 1 connector or Mezzanine 2 connector.
• Install Type B mezzanine cards on Mezzanine 2 connector.
Before installing the mezzanine card, be sure to review the following:
• System board components on page 13 for mezzanine connector location
• Mezzanine connector definitions on page 19
• Mezzanine connector guide pin locations on page 19
• Interconnect bay numbering and device mapping on page 40
When installing a mezzanine option on mezzanine connector 2, processor 2 must be installed.
Optional mezzanine cards enable external storage, network connectivity, or provide Fiber Channel
support.
Installing the mezzanine card option
Prerequisites
To install the mezzanine card option, you need a T-15 Torx screwdriver.
Hardware options installation 53
