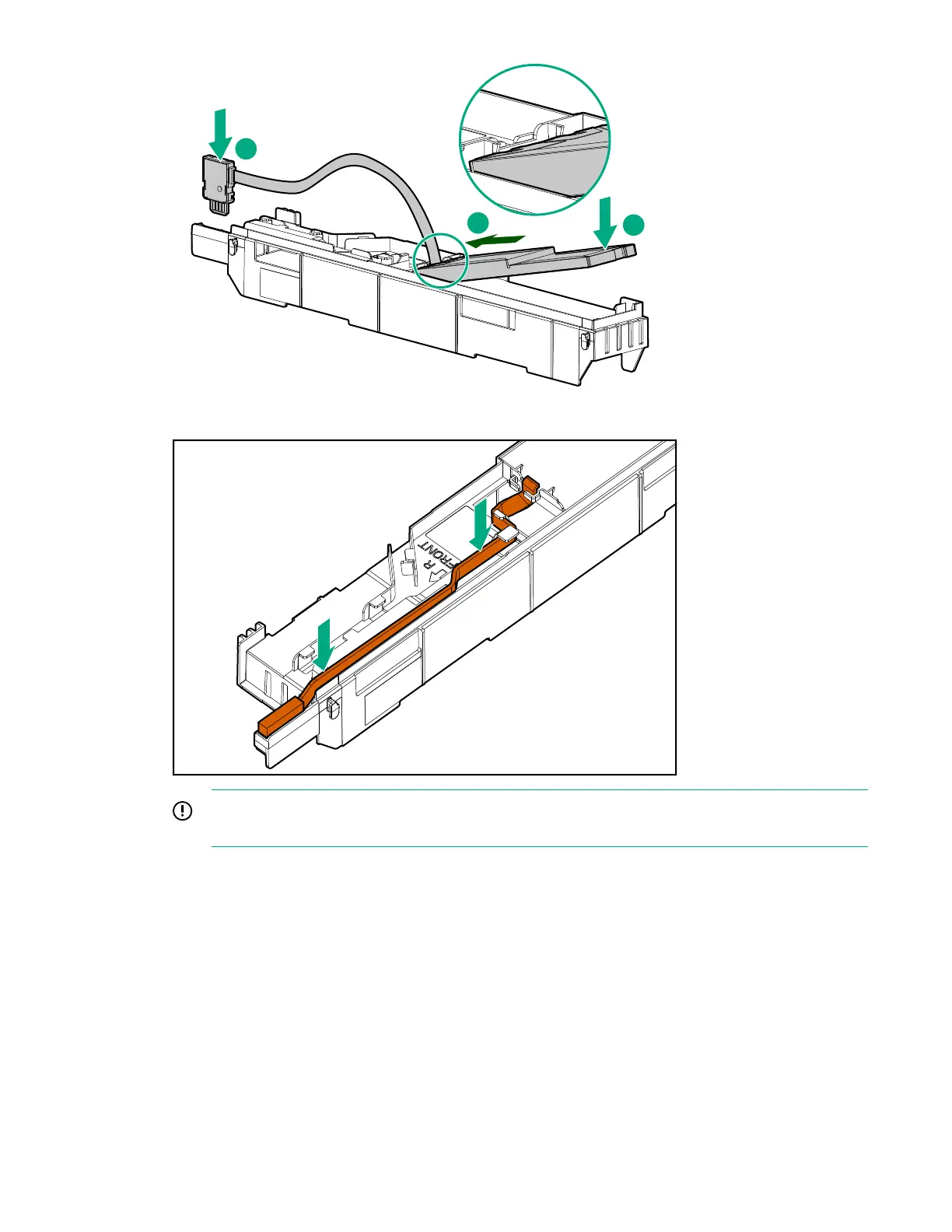

9. Route the cable on the right DIMM baffle.
IMPORTANT: When installing each DIMM baffle, be sure that the alignment tabs engage with
the side of the server blade.
10. Align and install the DIMM baffle.
Press down on the cable connector to fully seat the HPE Smart Storage Battery cable connector to
the system board.
