State Definition NVDIMM-N Function LED
0 The restore operation is in progress. Flashing
1 The restore operation is successful. Solid or On
2 Erase is in progress. Flashing
3 The erase operation is successful. Solid or On
4 The NVDIMM-N is armed, and the NVDIMM-N is in
normal operation.
Solid or On
5 The save operation is in progress. Flashing
6 The NVDIMM-N finished saving and battery is still
turned on (12 V still powered).
Solid or On
7 The NVDIMM-N has an internal error or a firmware
update is in progress. For more information about an
NVDIMM-N internal error, see the IML.
Fast-flashing
Mezzanine connector definitions
Item PCIe
Mezzanine connector 1 x16, Type A mezzanine card only
Mezzanine connector 2 x16, Type A or B mezzanine card
NOTE: When installing a mezzanine card option on mezzanine connector 2, processor 2 must be
installed.

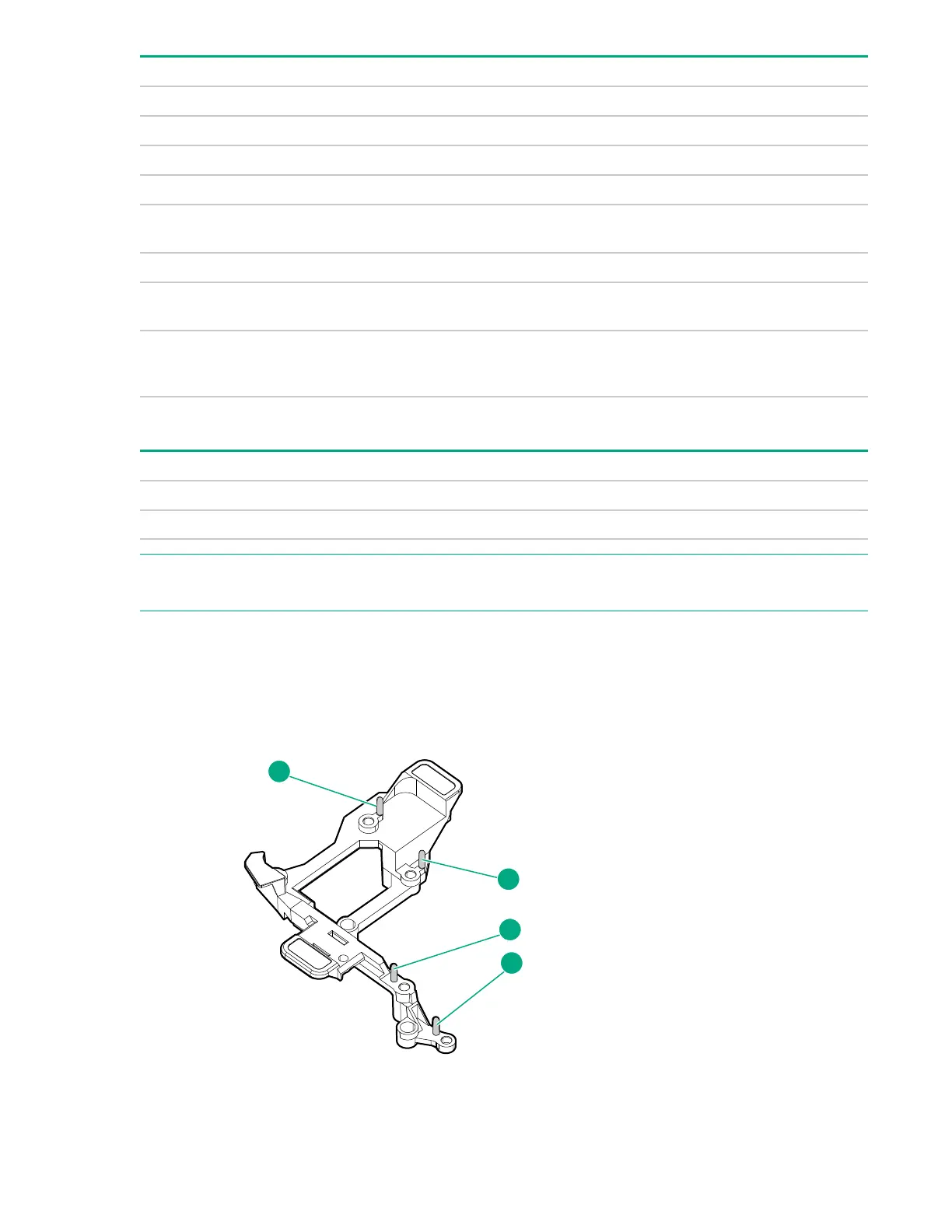

Mezzanine connector guide pin locations
The mezzanine assembly supports two mezzanine cards in this server blade. When installing a
mezzanine card into the assembly, be sure to use the guide pins associated with the mezzanine
connector.
Component identification 19
