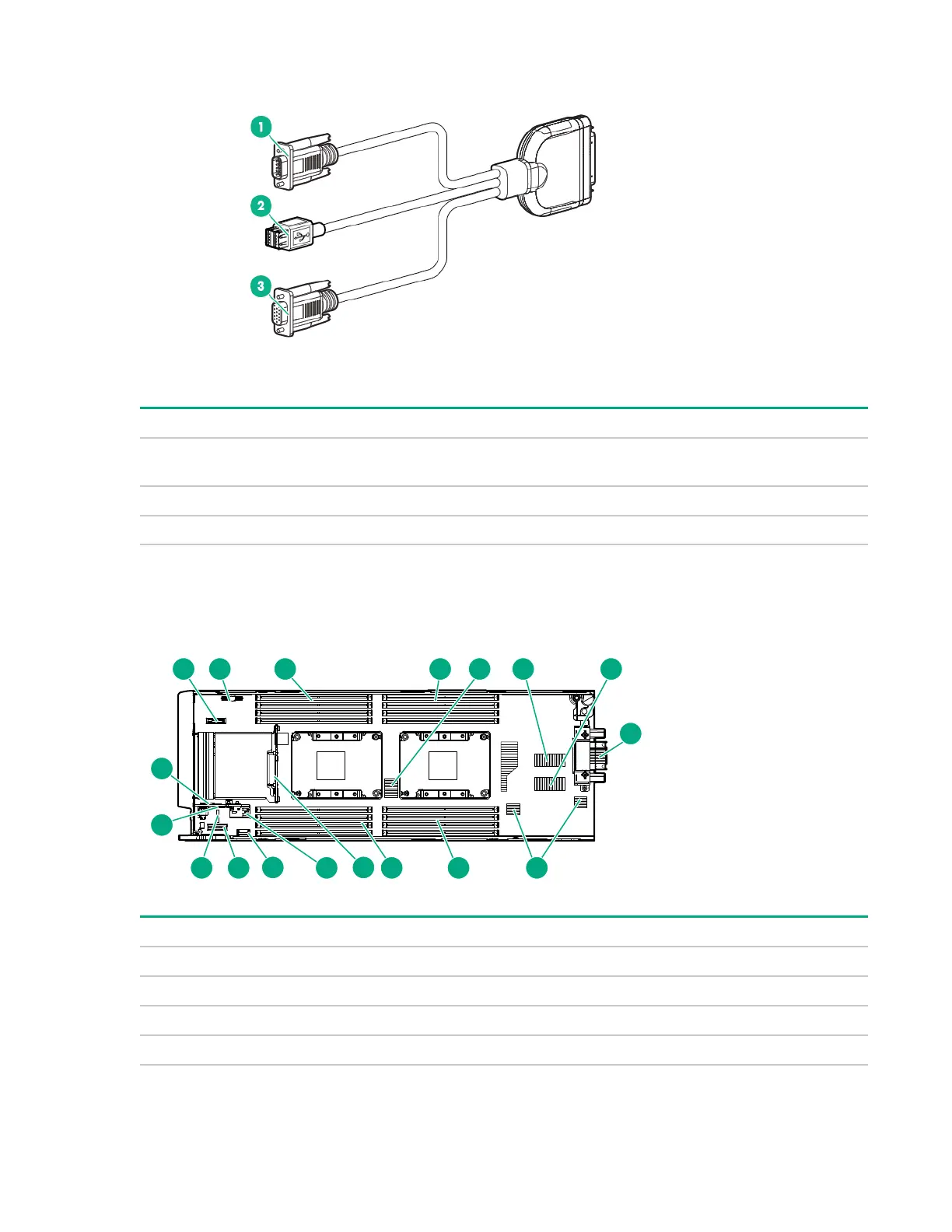

Item Connector Description
1 Serial For trained personnel to connect a null modem serial cable
and perform advanced diagnostic procedures
2 USB
1
For connecting up to two USB 2.0 devices
3 Video For connecting a video monitor
1
The USB connectors on the SUV cable do not support devices that require greater than a 500mA power source.
System board components
1 2 3
P2 P1
54
8
911
10
1314
15
16
43
6
12
7
Item Description
1 System battery
2 M.2 enablement option connector
3 Processor 2 DIMM slots (8)
4 Processor 1 DIMM slots (8)
Table Continued
Component identification 13
