7. Install the mezzanine assembly on page 33.
8. Install the access panel on page 23.
9. Install the server blade on page 42.
10. Power up the server blade on page 21.
M.2 enablement option
The M.2 enablement option consists of an M.2 riser and an M.2 interposer board that installs on the left
DIMM baffle. When the option is installed, the server blade supports up to two M.2 SSDs.
The M.2 riser board can support both 2280 and 22110 M.2 SSD options. If the M.2 riser is not configured
for the correct length of the M.2 SSDs being installed, relocate the PEM nut and rubber stoppers to the
location that support the drives being installed (Relocate the PEM nut and rubber stopper on page 28).

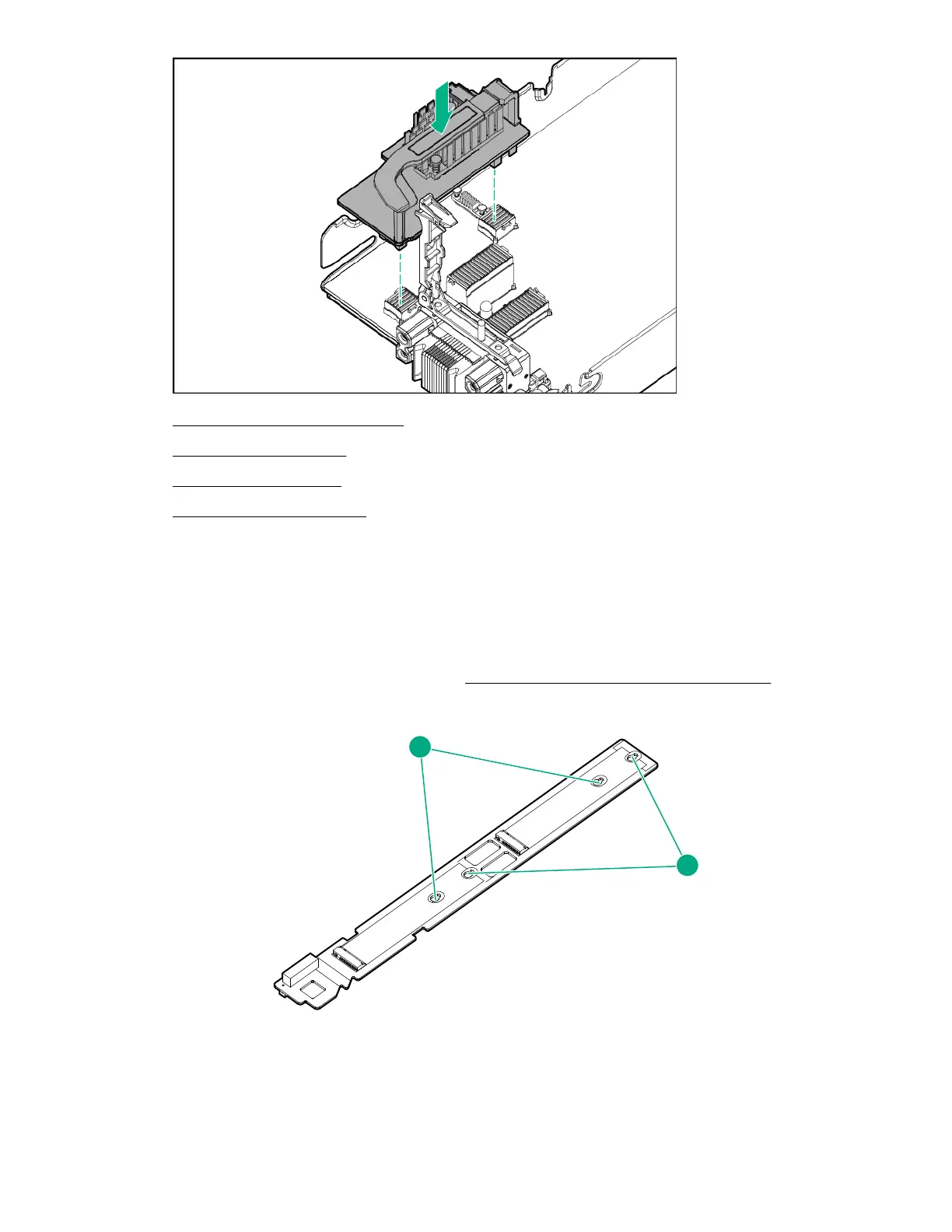

Figure 1: M.2 SSD PEM nut locations
56 Hardware options installation
