Component identification

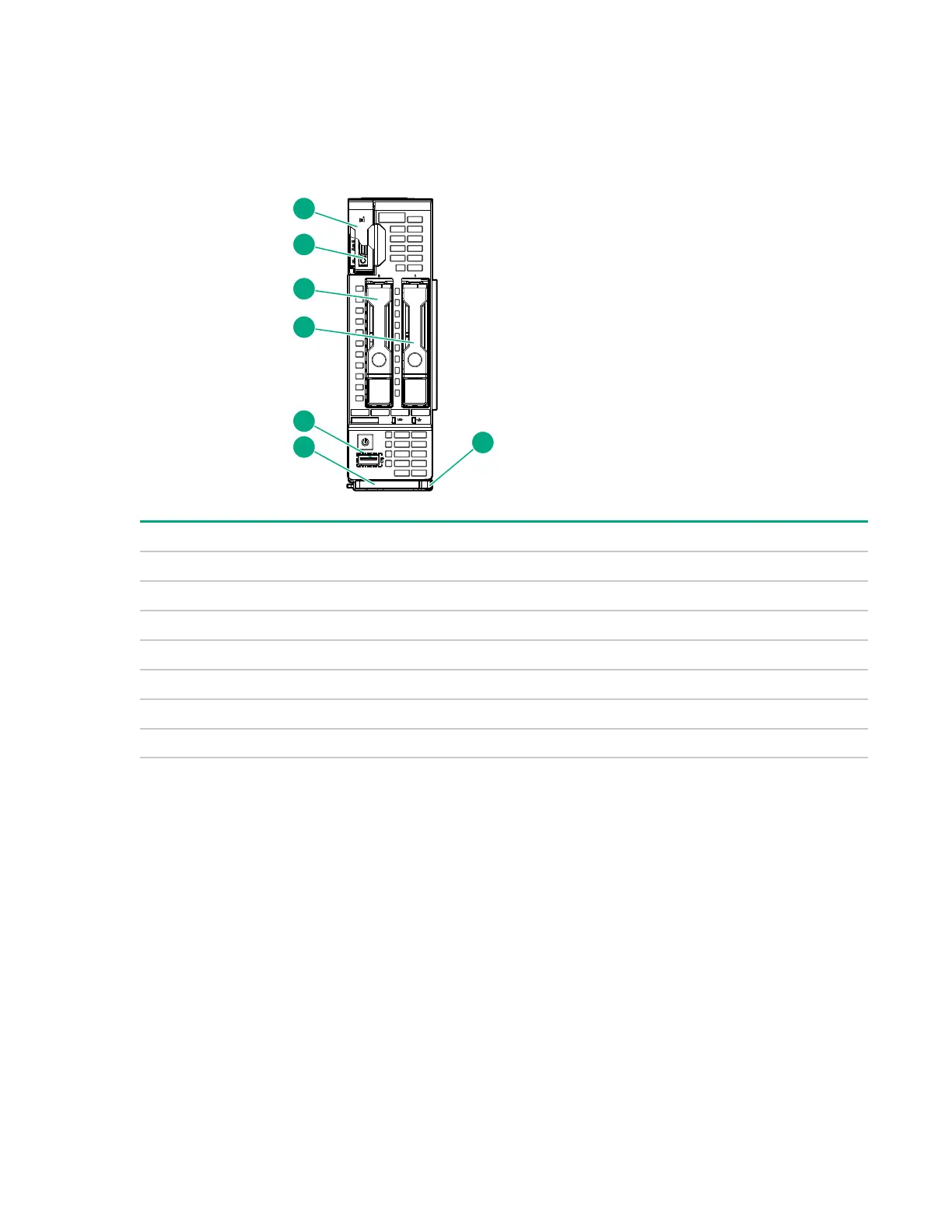

Front panel components
Item Description
1 Serial label pull tab
2 HPE c-Class Blade SUV connector
1
(behind the serial label pull tab)
3 Drive bay 2
4 Drive bay 1
5 iLO Service port
6 Server blade release lever
7 Server blade release latch
1
The SUV connector and the c-Class Blade SUV Cable are used for some server blade configuration and diagnostic
procedures.
