Procedure
1. Power down the server blade on page 21.
2. Remove the server blade on page 22.
3. Place the server blade on a flat, level work surface.
4. Remove the access panel on page 22.

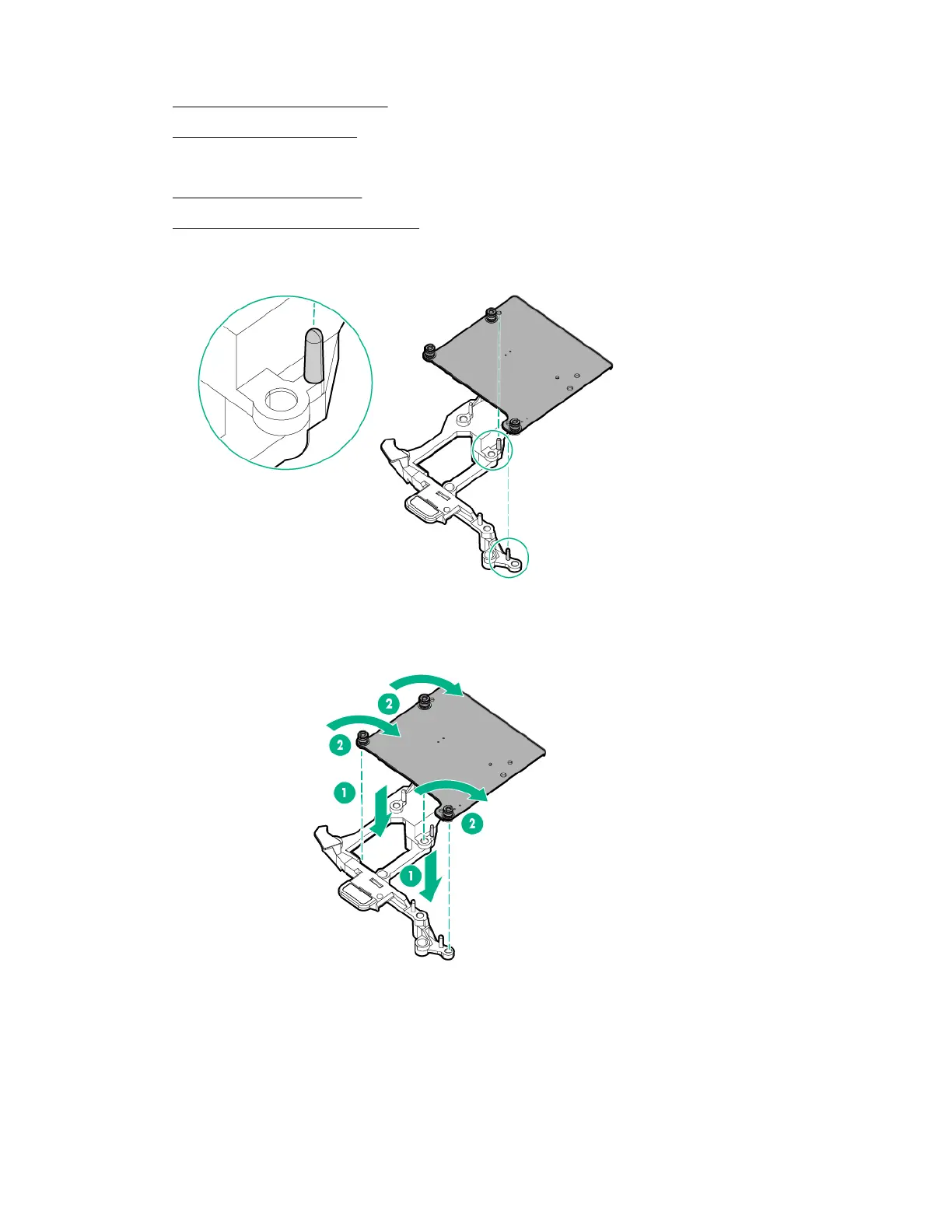

5. Remove the mezzanine assembly on page 32.
6. Align the mezzanine card using the appropriate guide pins on the mezzanine assembly.
7. Install the mezzanine card in the mezzanine assembly.
8. Align the mezzanine assembly with the guide pins on the system board, and then install the
mezzanine assembly on the system board.
Press firmly on the mezzanine assembly handles, and then close the mezzanine assembly latch.
54 Hardware options installation
