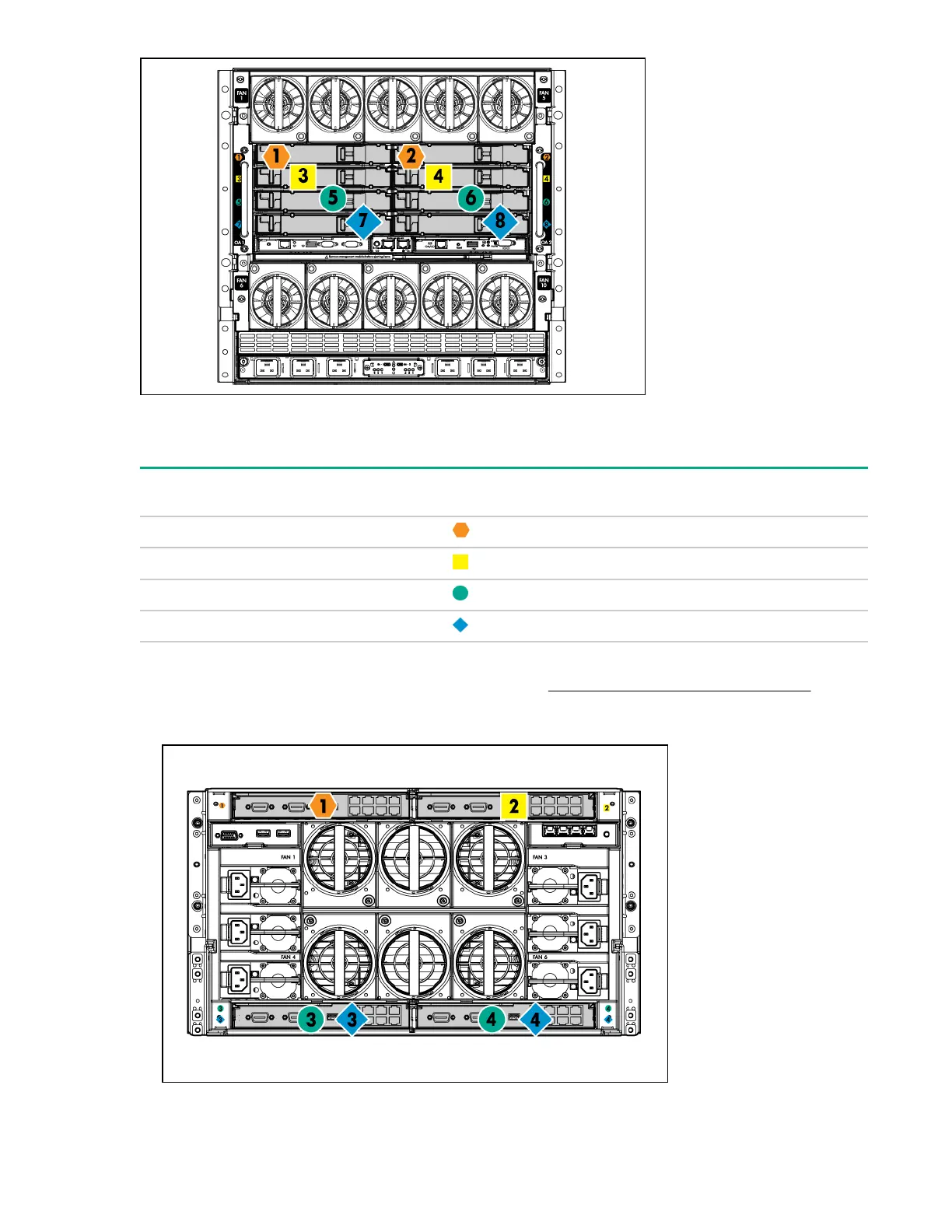

To support network connections for specific signals, install an interconnect module in the bay
corresponding to the FlexibleLOM or mezzanine signals.
Server blade
signal
Interconnect bay Interconnect bay labels
FlexibleLOM 1 and 2
Mezzanine 1 3 and 4
Mezzanine 2 5 and 6
Mezzanine 2 7 and 8
For detailed port mapping information, see the BladeSystem enclosure installation poster or the
BladeSystem enclosure setup and installation guide on the Hewlett Packard Enterprise website.
• HPE BladeSystem c3000 Enclosure
Setup 41
