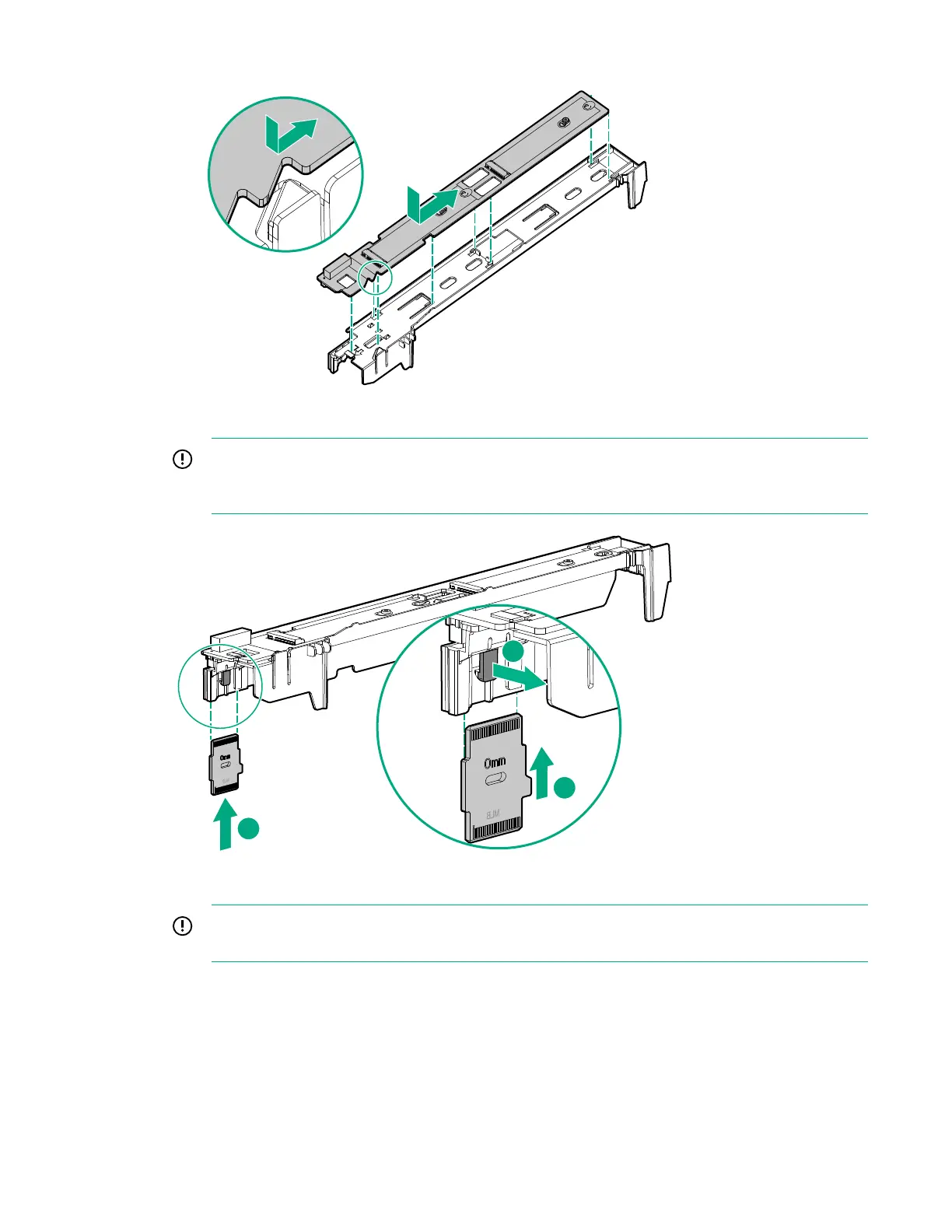

9. Install the M.2 interposer board on the left DIMM baffle.
IMPORTANT: MLB is printed on the M.2 interposer board to indicate edge of the board that
connects to the system board. When the M.2 interposer board is installed, MLB must face out
towards the edge of the server blade.
10. Align and install the left DIMM baffle in the server blade.
IMPORTANT: When installing each DIMM baffle, be sure that the alignment tabs engage with
the side of the server blade.
58 Hardware options installation
