3. Power down the server blade on page 21.
4. Remove the server blade on page 22.
5. Remove the access panel on page 22.
6. Remove the DIMM baffles on page 23.

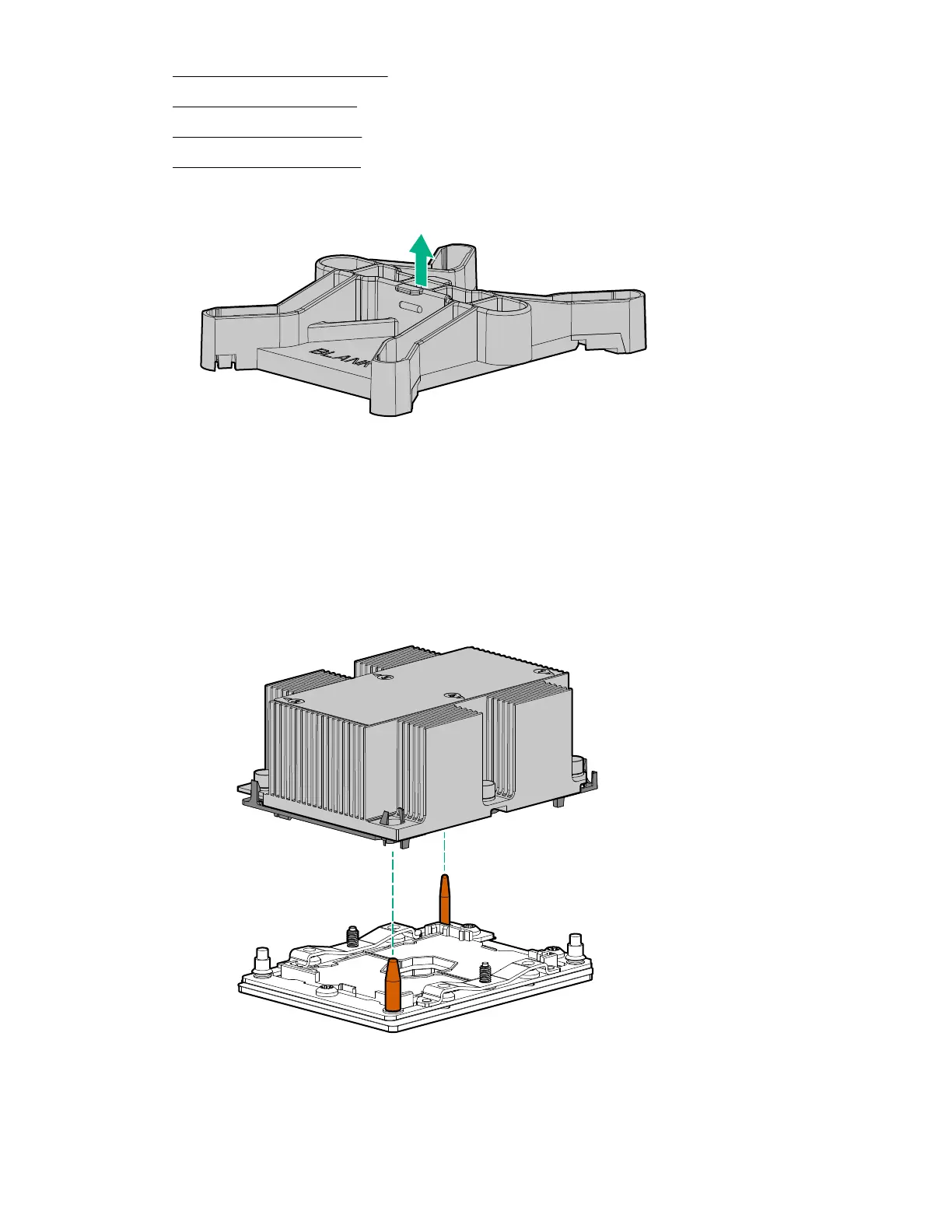

7. Remove the heatsink blank. Retain the heatsink blank for future use.
8. Install the processor-heatsink assembly:
a. Locate the Pin 1 indicator on the processor frame and the socket.
b. Align the processor heatsink assembly with the alignment pins and gently lower it down until it sits
evenly on the socket. The heatsink alignment pins are keyed. The processor will only install one
way.
A standard heatsink is shown. Your heatsink might look different.
Hardware options installation 67
