provides additional connections and the power required to support USB keys or external drives that
require more than 500mA at 5V.
Procedure
1. Open the serial label pull tab and connect the c-Class Blade SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB hub to one USB connector.
4. Connect the following to the USB hub:
• USB CD/DVD-ROM drive
• USB keyboard
• USB mouse

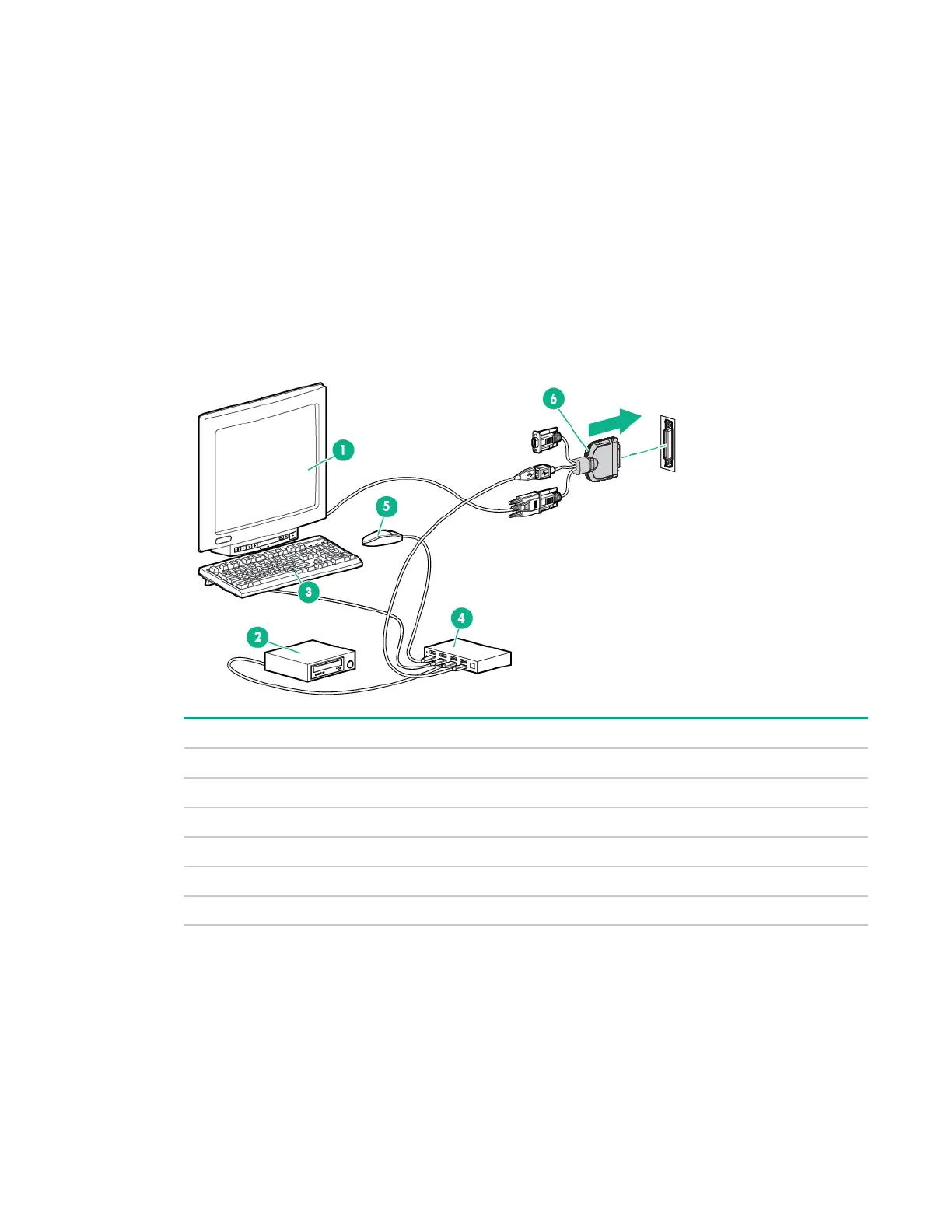

Item Description
1 Monitor
2 USB CD/DVD-ROM drive
3 USB keyboard
4 USB hub
5 USB mouse
6 c-Class Blade SUV Cable
78 Cabling
