Item LED Status Definition
2 NIC status Solid green Linked to network
Flashing green Network active
O No network activity

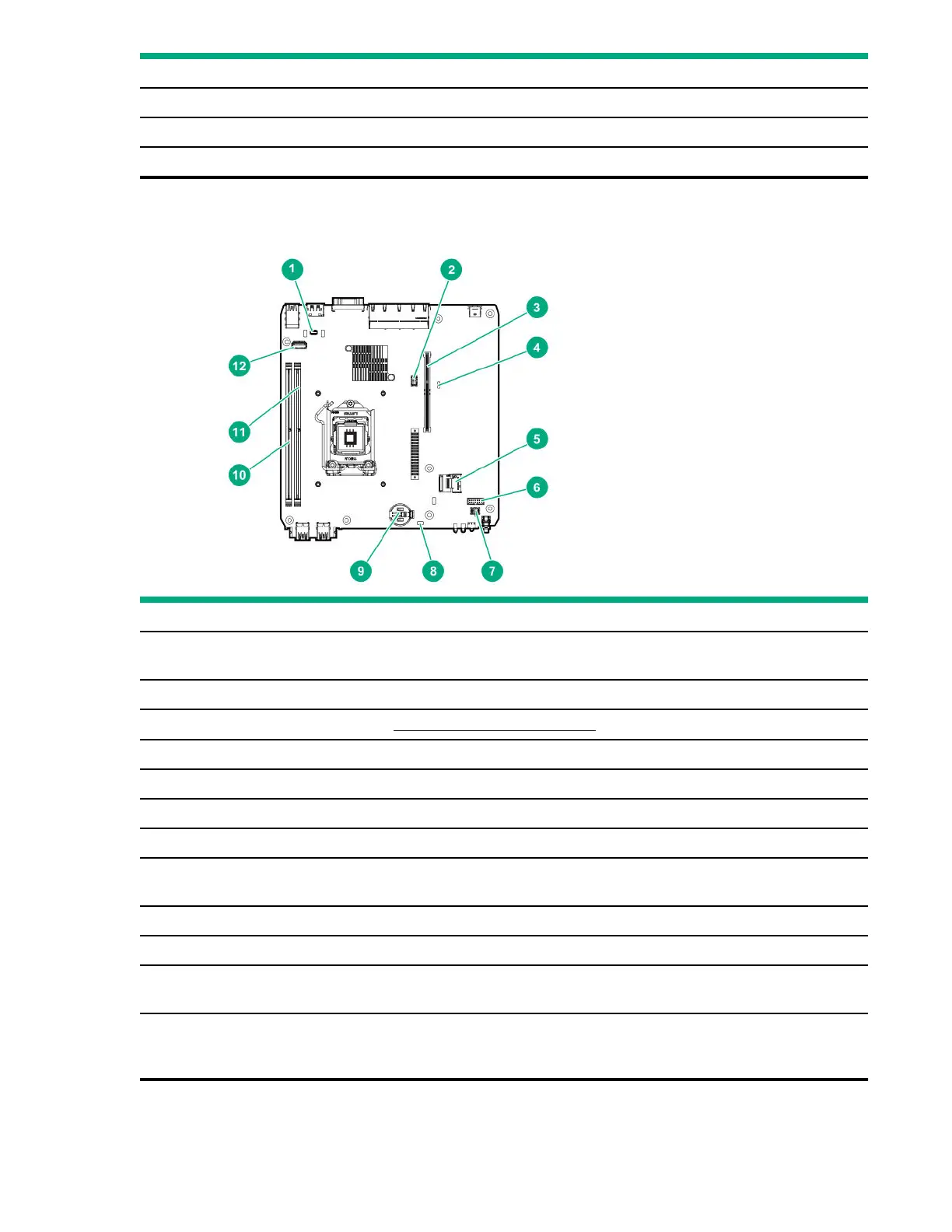

System board components
Item Component Description
1 TPM connector This connector supports the HPE Trusted Platform Module 20 Gen10 option
(864279-B21) for data security.
2 Fan connector Connects the fan cable.
3 Riser connector Connects the system riser board.
4 System maintenance switch Use this switch to physically configure various server settings.
5 SATA 6GB/s port Connects the drive SATA cable.
6 Drive sideband connector Connects the drive sideband signal cable.
7 Drive power connector Connects the drive power cable.
8 CMOS header Use this header to clear the CMOS and reset the BIOS settings to their factory
default values.
9 System battery This battery provides power to the server CMOS and real-time clock.
10 DIMM slot 1B This slot supports standard UDIMMs with ECC only.
11 DIMM slot 2A This slot supports standard UDIMMs with ECC only. If only one UDIMM is
installed, install it in this slot.
12 Internal USB 20 port Connect a USB device, such as a USB security key or a USB drive key, intended
for permanent use. The internal connection avoids issues of clearance on the
front or rear of the server and prevents physical access to secure data.
