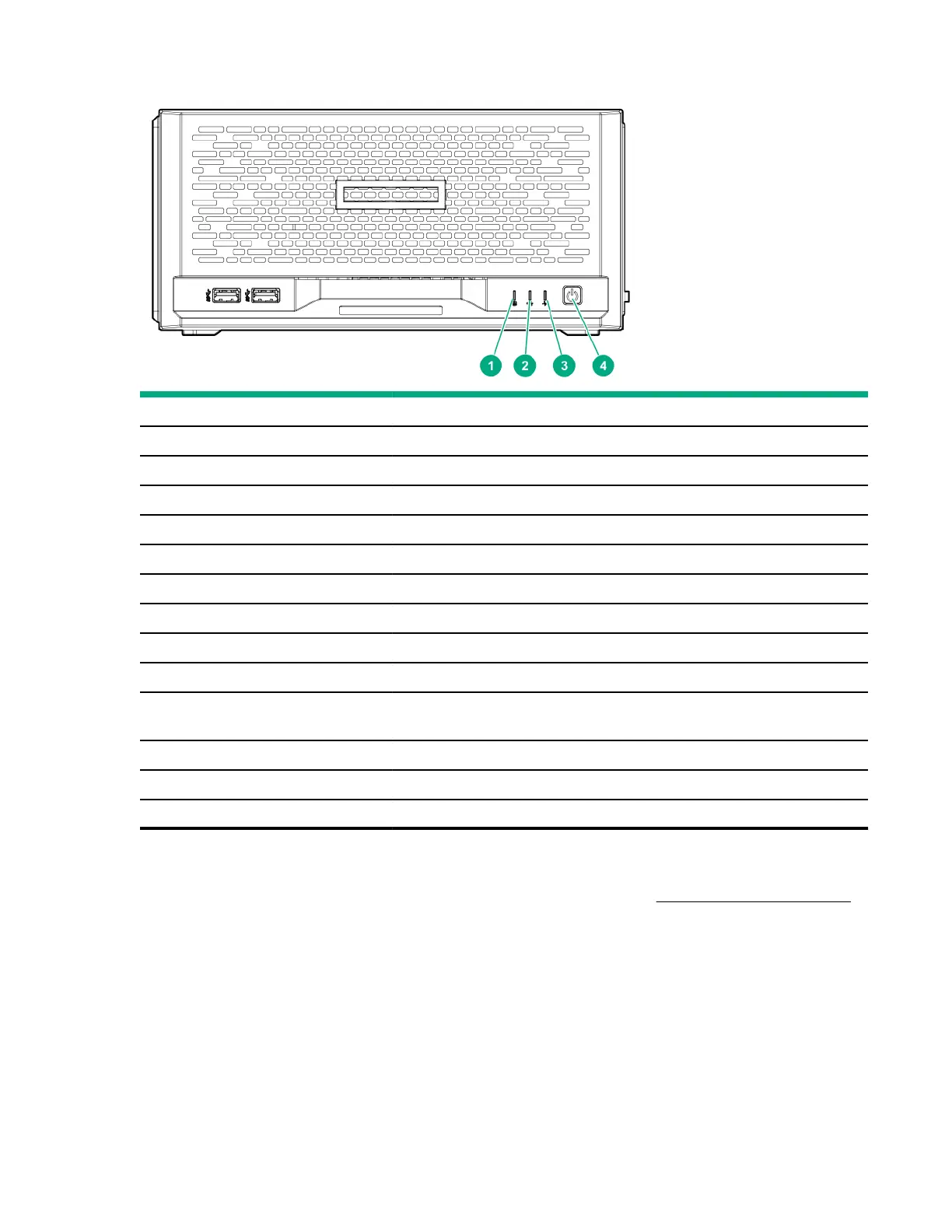

Front panel LEDs and button
Item Description Status Definition
1 Drive activity LED
1
Flashing green Ongoing drive activity
O No drive activity
2 NIC status LED
2, 3
Solid green Linked to network
Flashing green Network active
O No network activity
3 Health LED
3
Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
4
Flashing red System critical
4
4 Power on/Standby button
and system power LED
3
Solid green System on and normal operation
Flashing green Performing power-on sequence
Amber System in standby
O No power present
5
1
This LED only reflects the status of drives that are connected to the onboard SATA port.
2
This LED reflects the status of the onboard NIC ports managed by the embedded Intel I350-AM4 Ethernet Controller.
3
When these LEDs flash simultaneously, a power fault has occurred. For more information, see
Front panel LED power fault codes.
4
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health status.
5
Facility power is not present, power cord is not attached, or power supply failure has occurred.
Front panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are aected. Not all power faults are
used by all servers.
Component identification
7
