Item Component Description
5 System QR code label To access the server mobile product page (https://www.hpe.com/
qref/microservergen10plus), use a QR code scanner app in your
smartphone to scan this label. This mobile page contains links to server
setup information, spare part numbers, QuickSpecs, troubleshooting
resources, and other useful product links.
6 DisplayPort 10 Connects to a high-resolution digital display device.
7 VGA port Connects to an analog display device.
8 1 Gb RJ-45 port 4
To connect the server to a wired network, connect a standard Ethernet
cable here.
9 1 Gb RJ-45 port 3
10 1 Gb RJ-45 port 2
11 1 Gb RJ-45 port 1/iLO shared
network port
To connect the server to a wired network, connect a standard Ethernet
cable here.
When the iLO enablement option is installed, this port can be
configured to handle both server network and iLO network traic.
12 Power jack Connects the power cord.
13 PCIe3 ×16 expansion slot Connects a half-height, half-length (low-profile) PCIe3 expansion board
option.
1
These ports are also known as SuperSpeed USB 5 Gb/s ports. The appropriate cable and compatible hardware are required to take
advantage of the 5 Gb/s data transfer speed.

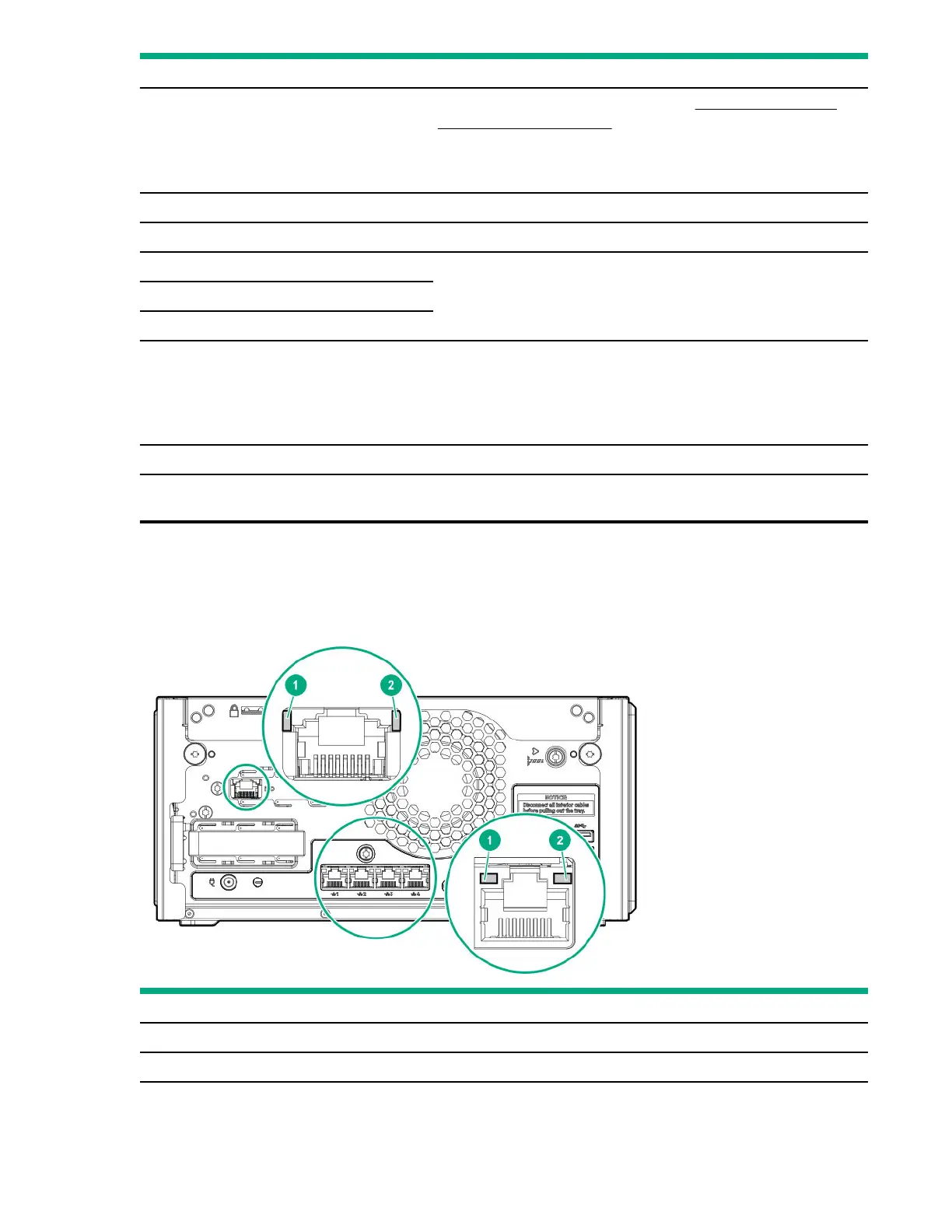

Rear panel LEDs
Item
LED Status Definition
1 NIC link Solid green Network link
O No network link
Table Continued
Component identification 9
To Next Page
